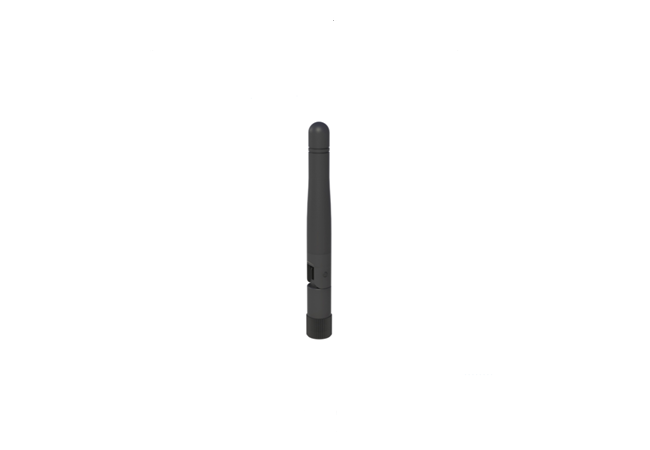

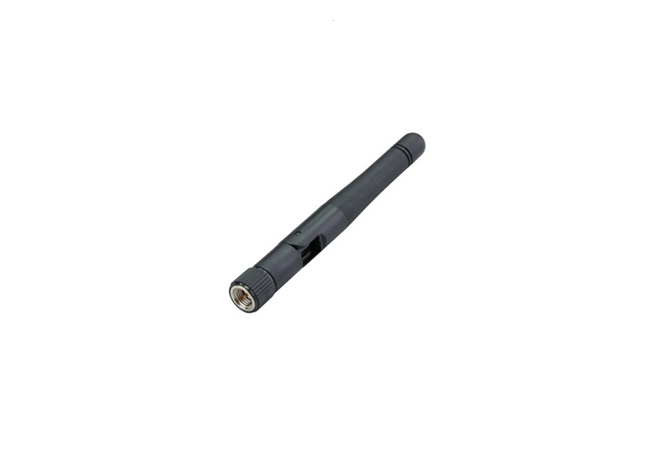

2.4G External WIFI Aerial,2dBi High Gain, SMA Male for Wireless Security Camera
This is an exterior sma WIFI antenna which can provide omni directional reflection by 2dBi gain.
- Frequency Range: 2400-2483MHz
- 2dBi Gain
- High Efficiency
- RP SMA Male Connector
- Height: 84 mm
- Diameter: 11 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | External Antenna , WIFI / Bluetooth |
| Frequency Range | 2400-2483MHz |
| Peak Gain | 2dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | RP SMA Male |
| Radome Color | Black |
| Package | PE Bag |
The external 2.4 GHz dipole RP SMA antenna is ideal for 2.4 GHz wireless applications such as Bluetooth and Wireless LAN. At only 84mm in length, its omni-directional 1.8dBi gain across all WIFI bands ensures constant reception and transmission.
This antenna structure is designed for robust handling and the housing is made by TPE giving superior environmental reliability and a quality finish.

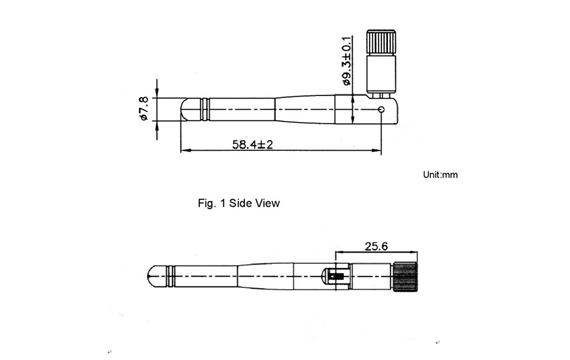

2.4G External WIFI Aerial Dimensions
At only 84mm in length omni-directional 1.8dBi gain across all bands(IEEE 802.11b/g/n/ax or IEEE 802.11 and IEEE 802.15) ensures constant reception and transmission.

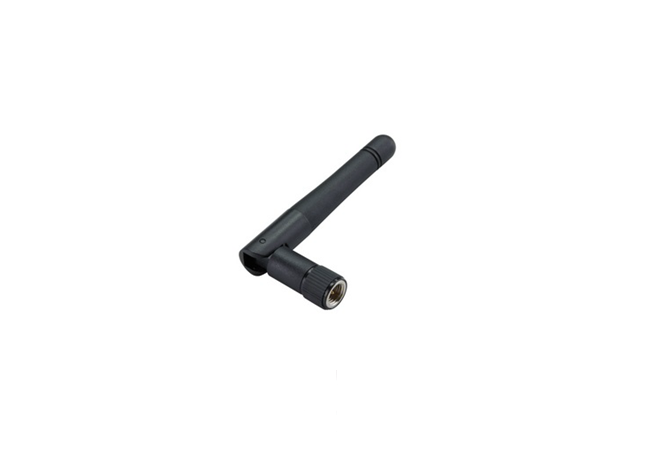

The antenna structure is designed for robust handling and the housing is made with TPE giving superior environmental reliability and a quality finish. The antenna can be rotated 90 degrees on the base hinge for ease of placement. Connector mount is fully customizable.

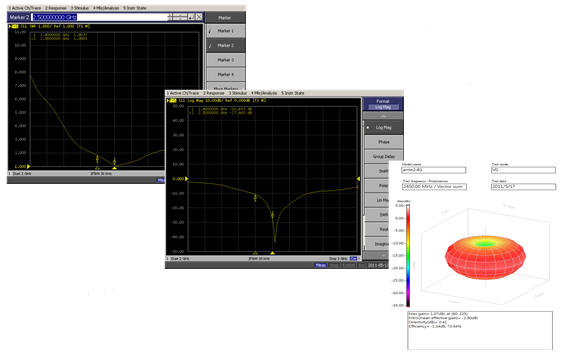

2.4G External WIFI Aerial Datas
This is an external omni-directional 2.4G WiFi antenna designed for WiFi Routers/Modems, Access Points, or Network Cards which can enhances wireless signal strength and range in a small room.
Return Loss: -15 dB
Efficiency: Up to 73%
Peak Gain: 1.8 dBi
2.4G External WIFI Aeria Applications
With RP SMA Male connector, this type of 2.4G external WIFI aerial can be used for various of applications, like WIFI networks, Security Cameras, Drones, Bluetooth/ Zigbee Modules and Public Hotspots.
WiFi routers and repeaters
Wireless access points
IoT devices and modules
Drones, security cameras, and smart devices
