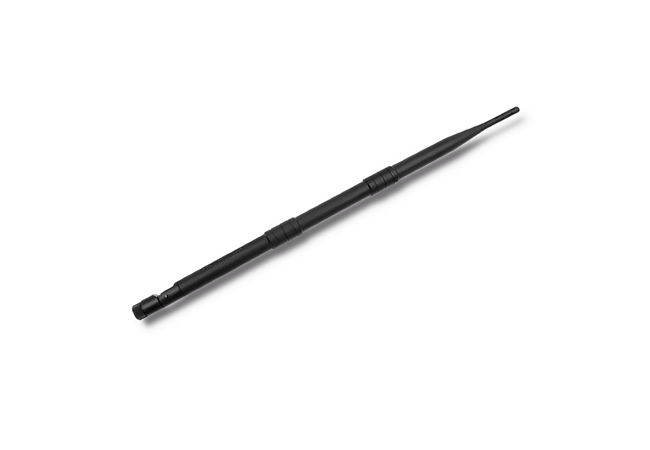

External 2.4GHz 9dBi Long Range WIFI Antenna
This is a high performance 2.4GHz 9dBi omnidirectional long range wifi antenna covering from 2400MHz to 2483MHz.
- Omni Directional Radiation Pattern Antenna
- 9dBi Peak Gain
- Collinear Struction
- High Efficiency
- 375mm in Length
- SMA Male or RP SMA Male Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Long Range WIFI Antenna |
| Frequency Range | 2400-2483 MHz |
| Peak Gain | 9 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male or RP SMA Male |
| Radome Color | Black |
| Package | PE Bag |
This high efficiency 2.4GHz WIFI antenna is designed to provide long distance coverage at 2.4GHz to 2.483GHz band.
Its indoor use feature can be replaced at where omni directional radiation pattern is required.
Its peak gain of 9dBi can ensure it constant reception and transmisson between the device and the network.

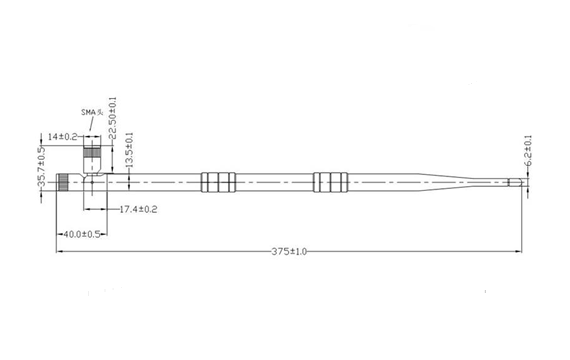

Long Range WIFI Antenna Features

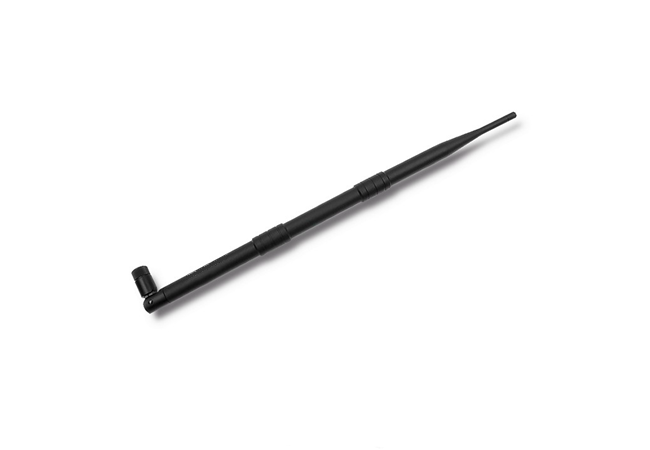

This 2.4GHz flexible antenna featured a tilt and swivel SMA connector with 375mm in length can be used vertically at a right angle, 0° degree, 45° degree and 90° degree.
The omni directional radiation pattern and high efficiency with collinear dipole design means that it has 9dBi peak gain and it can provide a great signal coverage over long distance.

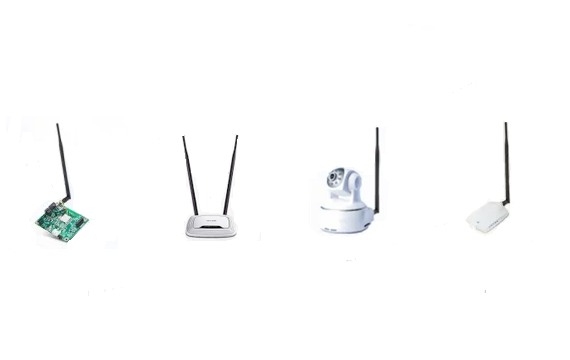

Long Range WIFI Antenna Applications
This flexible dipole wifi antenna is ideally suitable for IEEE 802.11b, 802.11g AND 802.11n wireless LANs, Bluetooth and other wireless applications.
Mobile Applications
2.4GHz ISM Band
Wireless LAN Applications
Public Hotspot
Wireless Video System
Related Products
A 2.4GHz 9dBi WIFI antenna is a single band wireless antenna which can be operated at standard 2.4GHz wireless frequency, like WIFI 802.11b/g/n, Bluetooth and Zigbee.
At the same condition, yes, 9dBi high gain antenna will increase your WIFI coverage range.
At a legal limit of around 100mW on 2.4GHz band, also in a clear case, it can transmit about 600 meters to 1.2 kilometers, the transmitting distance will decrease by environment.
Yes, it is suitable for your WIFI router no matter whether your router is dual-band or single-band, just need to confirm the connector type.
Usually, for most of WIFI router in the market (ASUS, TP-Link, Netgear, Nighthawk and Linksys), the connector is SMA Male or RP SMA Male. Also, we can deal with it by your request.
Yes, the antenna height is one of most critical factors for affecting the singal quality and your WIFI coverage.
Yes, but it is just one optional way to extend WIFI signal between two buildings.
Yes, we can offer OEM and ODM for your industrial, commercial wireless applications according to your devices.
