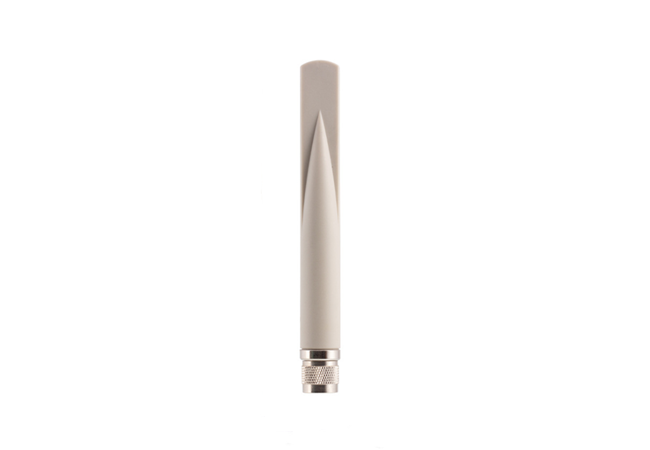

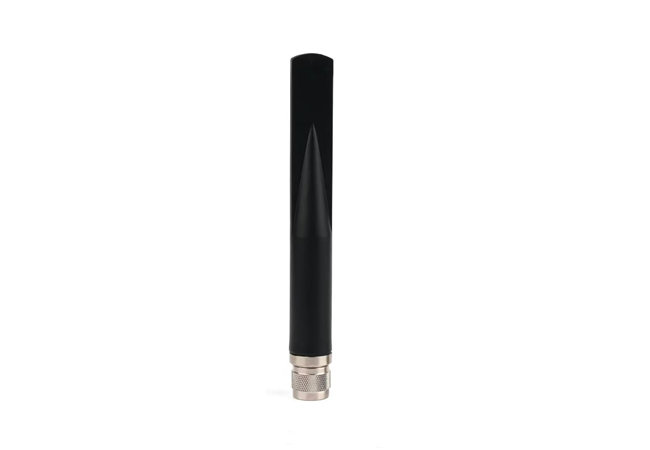

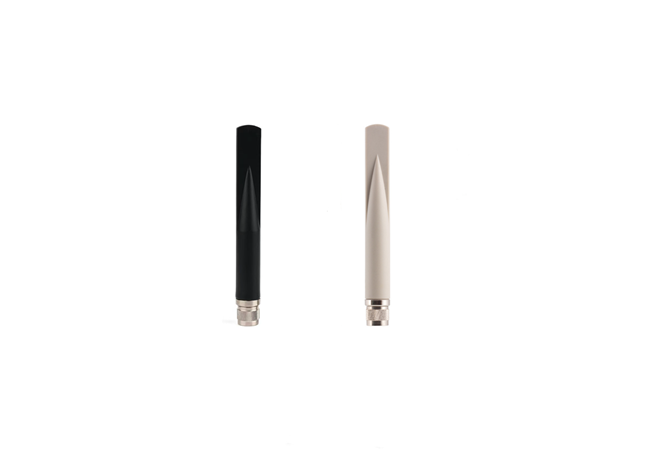

915MHz External Antenna for IoT Devices
This 915MHz external antenna is designed by IP-67 rated for outdoor or indoor use with 3.5dBi high gain.
- LoRa 902-928MHz Band Operation
- High Efficiency up to 72%
- N Male Connector Design

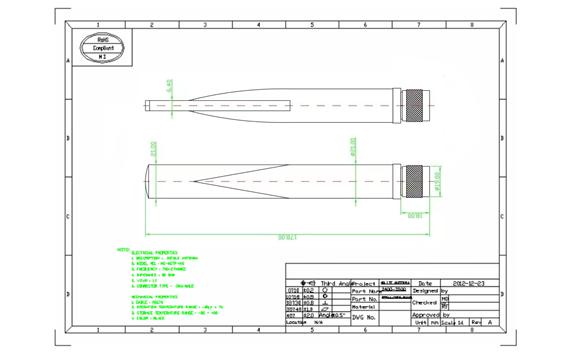

- Height: 178 mm
- Diameter: 21 mm
- IP-67 Rated
- Specifications
- Introduction
- Datasheet
| Antenna Type | 915MHz External Antenna |
| Frequency Range | 902 ∼ 928 MHz |
| Peak Gain | 3.5 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | N Male |
| Radome Color | Black |
| Package | PE Bag |
This 915MHz external antenna for IoT is designed for reliable wireless connectivity in industrial and commercial IoT deployments. It delivers strong signal performance across long distance.
915MHz External Antenna Key Benefits
This is a high performance 915MHz external omni-directional antenna. The IP-67 rated characteristic makes it suitable for outdoor or indoor use. Some Key benefits are followings:
Optimized for IoT communication
Strong and stable signal transmission
Suitable for US 915MHz ISM Band
Easy external mounting (N Male Connector)
Overall, this external 915MHz antenna is a reliable and efficient solutions for your systems and devices.

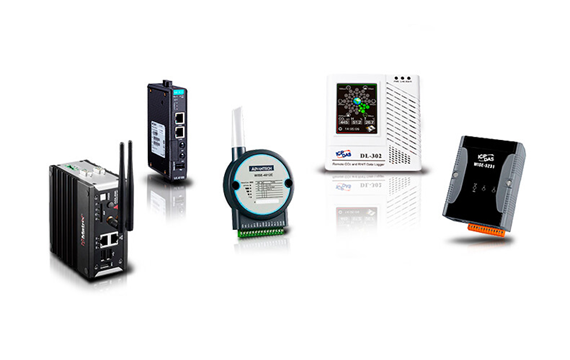

915MHz External Antenna Applications
This waterproof 915MHz external antenna that can be used in various applications,especially in the wireless communications and IoT devices for outdoor and indoor uses. Here are some key application scenarios.
Smart Agriculture
Industrial IoT Systems
Asset Tracking
Remote Monitoring
LoRa Nodes
Why Choose This Antenna
Performance
- Extended communication range
- Stable signal in harsh environments
- Reduced packet loss in IoT networks
Customization Options
- Compatible cable assembly
- Connector type (N Male connector default)
- Gain tuning (this antenna is 3dBi high gain)
If you have any other questions, plz contact us for IoT antenna solutions
Related Products
- LoRa and LPWAN Networks
- Smart Metering & Grid Inftrastruture
- Industrial Automation & SCADA
- RFID
- Meshtastic & Off-Grid Communication
Yes, absolutely, this waterproof 915MHz antenna can be used for industrial IoT systems which working on 915MHz frequency band.
Yes, it is IP67 rated, can be used for outdoor harsh environment.

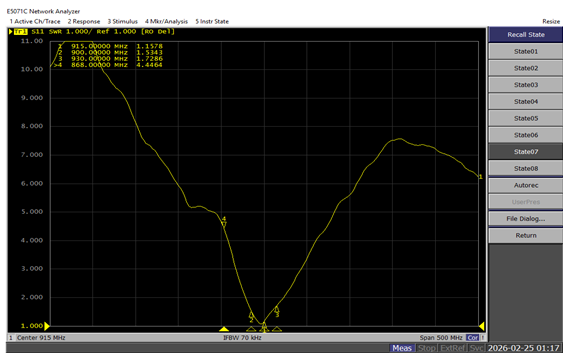

According to our Network Analyzer （Agilent 5071B）test, the VSWR is below 1.5 at 915MHz , and 902-928MHz is totally below 1.8
From the basic data, the external antennas are usually 10% -20% higher than embedded antennas.
A 915MHz antenna is compatible with any hardware device that features a 915MHz RF transceiver module (such as the Semtech SX1262, SX1302, or TI CC1310) and has a matching RF connector type of N Male.
Yes, it can be used for asset tracking which is via 915MHz frequency band.
Yes, we absolutely accept OEM and ODM for your wireless IoT project.
