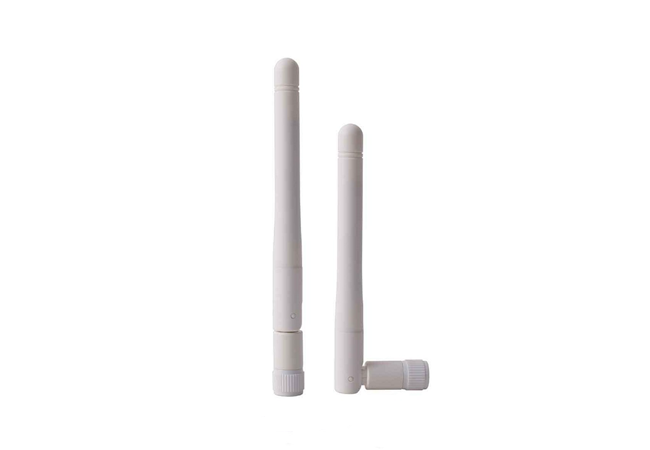

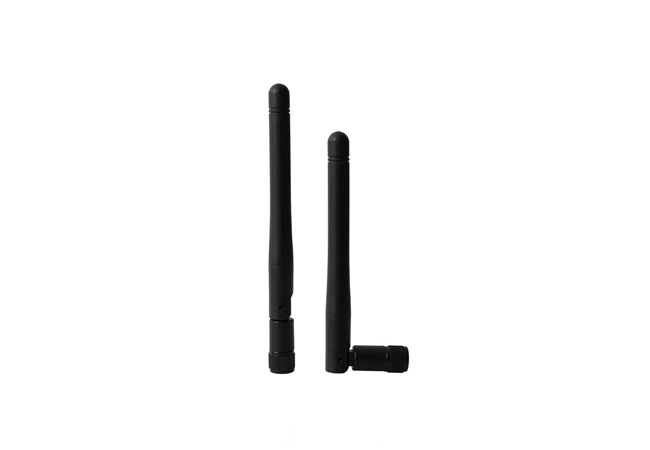

868MHz LoRa Antenna for LoRaWAN Networks
- Optimized for 863-870MHz LoRaWAN
- 2dBi Omnidirectional Gain
- 360° Coverage
- Low VSWR and High Efficiency Design
- SMA Male Connector
- OEM & ODM Customization Supported
- RoHS Compliant
What is an 868MHz LoRa Antenna ?
An 868MHz LoRa antenna is a radio frequency (RF) antenna specifically designed to transmit and receive signals in the 863–870MHz frequency band, which is widely used for LoRa (Long Range) and LoRaWAN networks across Europe and many other regions.
The antenna plays a critical role in wireless communication by converting electrical signals into radio waves and vice versa. A properly tuned 868MHz LoRa antenna can significantly improve communication range, signal reliability, and network performance.
It is commonly used in:
- Smart Metering
- Industrial IoT
- Smart Cities
- Telemetry & SCADA
Specification table
| Parameter | Specification |
| SKU | MS-868XZD-001 |
| Frequency Range | 863-870 MHz |
| Center Frequency | 868 MHz |
| Antenna Type | LoRa Antenna |
| Radiation Pattern | Omnidirectional |
| Polarization | Vertical |
| Gain | 2 dBi |

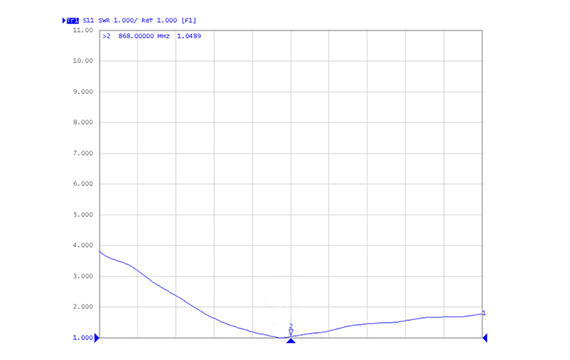

| VSWR | ≤ 2.0 |
| Return Loss | ≥ 10 dB |
| Impedance | 50 Ω |
| Connector | SMA Male |

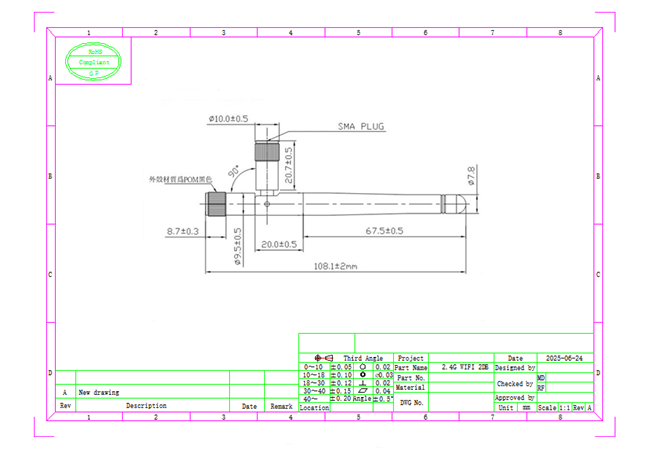

| Length | 108 ± 1 mm |
| Housing Material | TPE / ABS |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -45°C to +90°C |
| RoHS Compliance | Yes |
About Others
| ITEM | |
| MOQ | 100pcs, each one is USD$ 0.35 |
| EXW | Not including any transportation cost |
| Lead Time | 100-500pcs, will take one week for production
500-1000pcs, will take 10days for production Over 1000pcs, will depend on the materials back |
868MHz LoRa Antenna Features
- Optimized for 863-870MHz LoRa Frequency Band

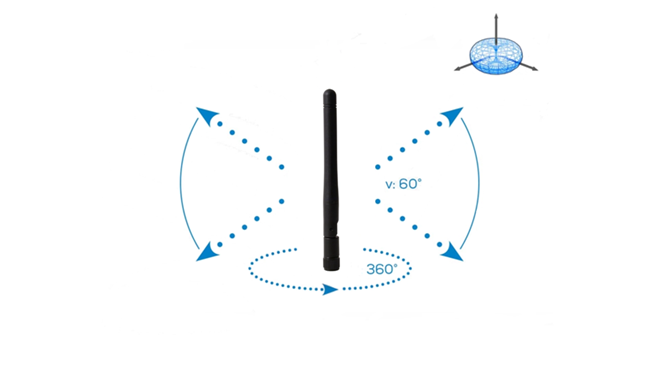

- Omnidirectional Coverage –360° Signal Coverage
- Long Range Wireless Communication
- Suitable for Indoor Installation
- Compatible with LoRa Gateways and Sensor Networks
- OEM & ODM Available– Connector Options Available

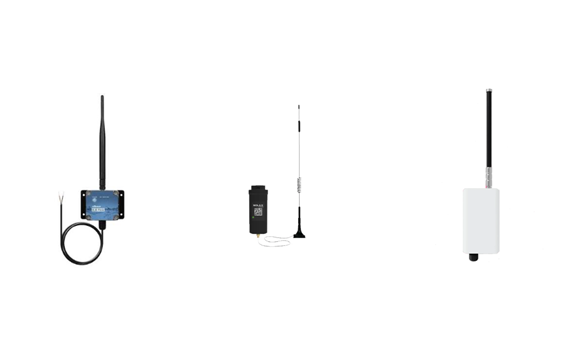

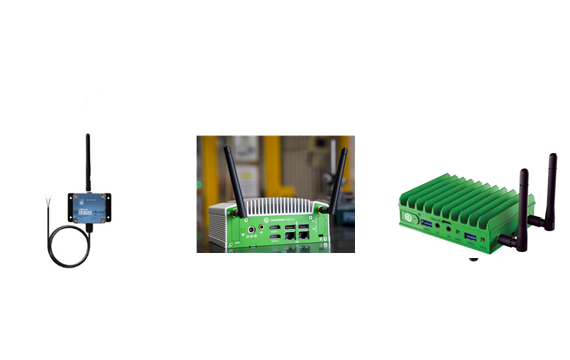

Typical Applications of 868MHz LoRa Antenna
-

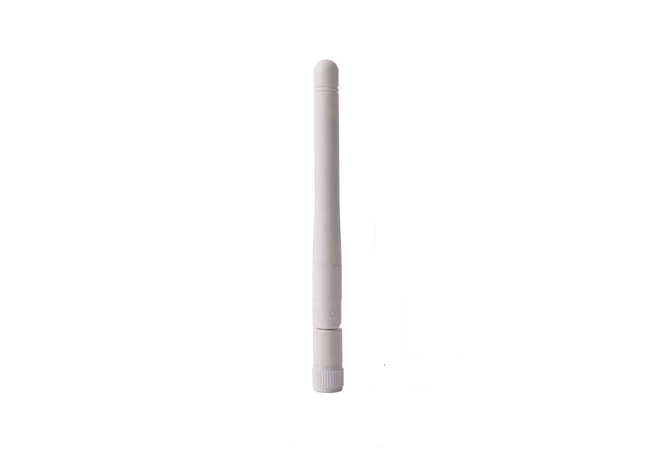

Smart Metering
Used in: Water Meters, Gas Meters, Electricity Meters
- Industrial IoT
Supports: Factory Automation, Equipment Monitoring, Predictive Maintenance, Remote Diagnostics
- Smart Cities
Applications include: Smart Lighting, Parking Sensors, Waste Management and Evironmental Monitoring
- Agriculture
Used for: Soil Moisture Monitoring, Irrigation Control, Weather Stations and Livestock Tracking

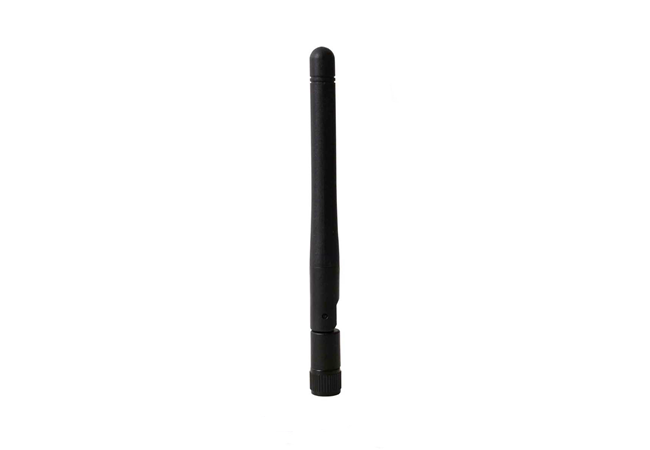

- Telemetry & SCADA
Suitable for: Pipeline Monitoring, Utility Networks, Infrastructure Monitoring and Remote Sensing Systems

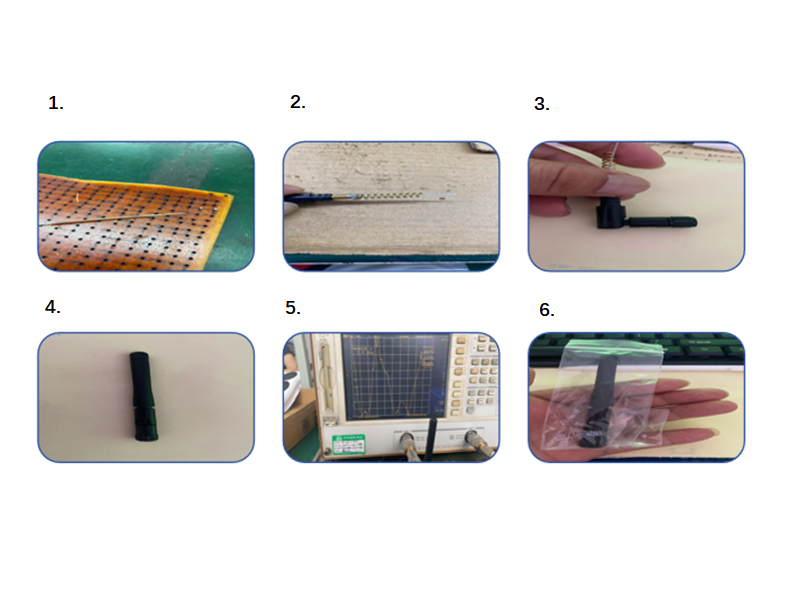

868MHz LoRa Antenna Production Process
- Welding Pin
- Assemble the Shell
- Welding Brass Tube and Spring
- Testing
- QC
- Packing

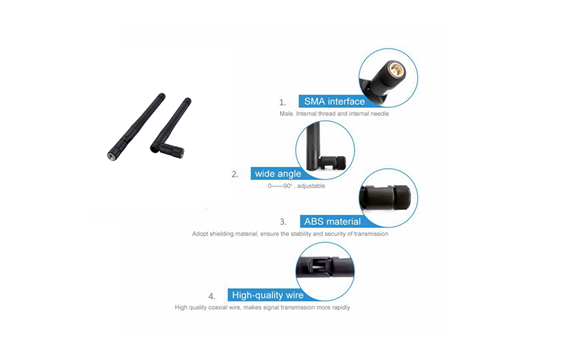

Advantages of 868MHz LoRa Antenna
1. Excellent Long-Range Communication
2. Low Power Consumption
3. Reliable Signal Coverage
4. Suitable for Large-Scale IoT Networks
5. Compact Antenna Options
6. Flexible Indoor Deployment
7. Supports Reliable Industrial Communication
8. Cost-Effective Wireless Solution
Who Should Use This 868MHz LoRa Antenna?
This antenna is suitable for:
- LoRaWAN gateway manufacturers
- IoT device manufacturers
- Smart meter manufacturers
- Industrial automation companies
- Agricultural IoT companies
- Environmental monitoring companies
- Asset tracking companies
- Wireless sensor manufacturers
- Telemetry equipment manufacturers
Why Choose an 868MHz LoRa Antenna ?
| Feature | 868MHz Antenna | 915MHz Antenna |
|---|---|---|
| Operating Range | 863-870MHz | 902-928MHz |
| Primary Regions | Europe and 868MHz ISM Band | North America, Australia and 915MHz ISM Band |
| Typical Applications | LoRaWAN, Smart Metering, Industrial IoT, Smart Cities | LoRaWAN, Asset Tracking, Agriculture, Logistics |
| Quarter-Wave Antenna Length | Approximately 8.6 cm | Approximately 8.2 cm |

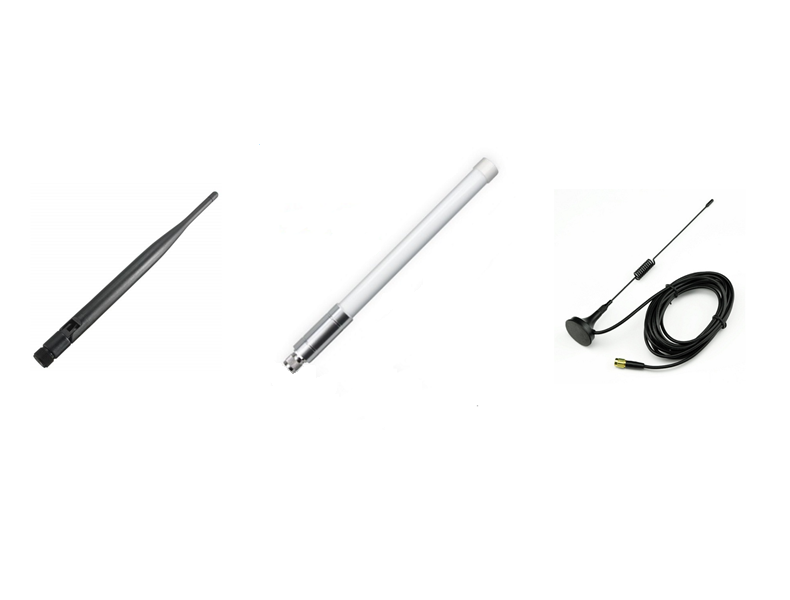

| Common Antenna Types | Fiberglass, PCB, FPC, Magnetic Mount, Terminal Mount | Fiberglass, PCB, FPC, Magnetic Mount, Terminal Mount |
| Feature | 433MHz Antenna | 868MHz Antenna |
|---|---|---|
| Frequency Range | 433.05-433.79MHz | 863-870MHz |
| Quarter-Wave Antenna Length | Approximately 17.3 cm | Approximately 8.6 cm |
| Antenna Size
|
Larger | Smaller |
| Obstacle Penetration
|
Excellent | Good |
| Common Antenna Types | Spring, PCB, Fiberglass, Magnetic Mount | PCB, FPC, Fibergalss, Magnetic Mount |
868MHz LoRa Antenna Specifications
Related 868MHz Antennas
About 868MHz LoRa Antenna FAQs
If you have any questions on 868MHz antenna, plz check the following questions, if can’t find it, also can contact me.
An 868MHz LoRa antenna is used in LoRaWAN networks, smart metering systems, industrial IoT devices, telemetry equipment, and wireless sensor networks throughout Europe.
An 868MHz LoRa Antenna does not have a fixed communication range. Actual LoRaWAN coverage depends on antenna gain, installation height, gateway location, transmit power, spreading factor, receiver sensitivity, terrain and building obstructions.
Omnidirectional antennas provide 360-degree coverage, making them ideal for gateway installations communicating with sensors located in multiple directions.
Nope, this 868MHz LoRa antenna version is just a rotable and hinged type, it is not available with IP65 or IP67 protection, so it can’t be used for outdoor .
