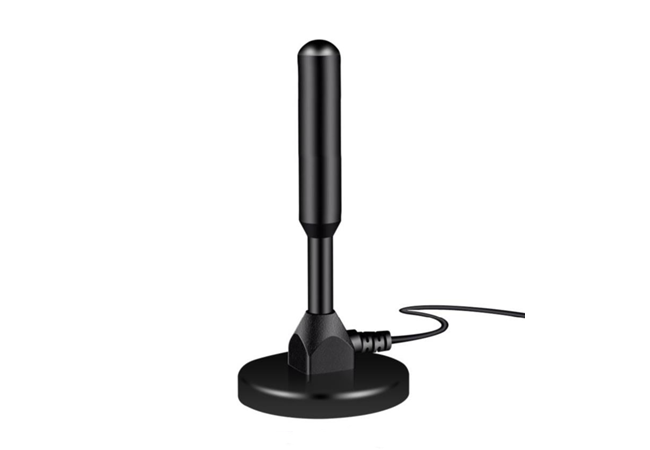

Best Indoor Digital TV Antenna,20dBi High Gain, Amplified VHF UHF for Home Smart TV
This is an indoor digital HDTV TV antenna on 20dBi high gain which needs 3-5V input power.
- Frequency Range: 174-230/470-862MHz
- 20dBi High Gain
- Magnetic Base
- F/ IEC(TV) and USB Connector
- Height: 133 mm
- Base Diameter: 62 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Digital TV Antenna , ATSC/DTMB/ISDBT/DVB-T(DVB-T2) |
| Frequency Range | 174-230/470-862MHz |
| Peak Gain | 20 dBi |
| Impedance | 75 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | F / IEC (TV) and USB |
| Radome Color | Black |
| Package | PE Bag (paper box packing optional) |
This indoor digital HDTV Antenna built in amplifier can receive your local free HDTV channels. The product is a active indoor antenna for the reception of analogue and digital TV signals for indoor use only. For most of countries, digital signals can be divided by DVB-T (DVB-T2), ISDBT, ASTC and so on.

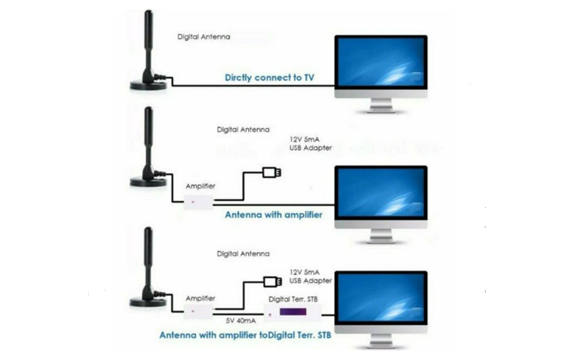

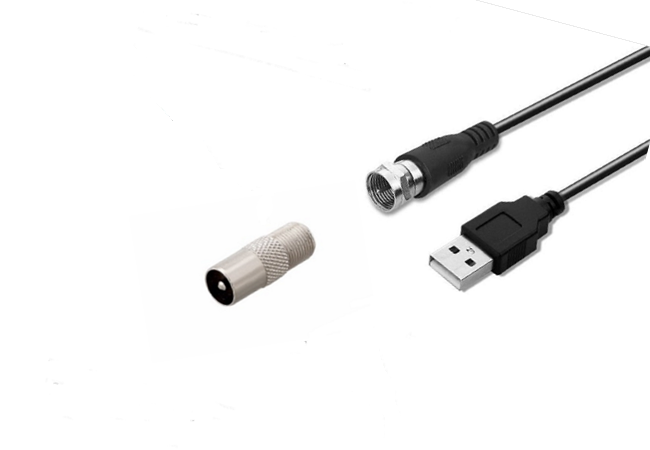

This indoor digital antenna has 2 types of connector, F Male (IEC) is for directly connecting to your smart TV antenna interface, and the USB is for inputing 3-5V power from your smart TV.
Indoor Digital TV Antenna Features

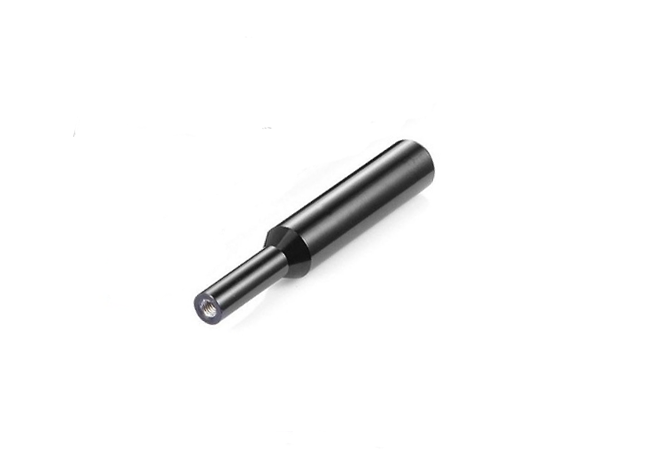

This antenna body is made by Alu, (as for digital tv antenna body, Alu is much better than Copper), which can constantly receive the television signal from locals.
At only 113mm in length, its omni-directional reception with 20dBi high gain can be placed in your room anywhere for receiving analogue and digital TV signals in VHF range (174-230MHz) and UHF range (470-862MHz)
It is also ideally suited for leisure activities such as using in a caravan or boat.
Enjoy Your Favorite Program

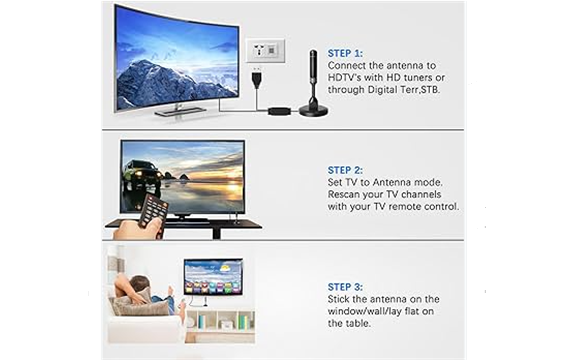

- Connect this digital TV antenna to the “Ant In ” on the back of your smart TV or your DVB tuner.
- In your smart TV’s setup menu, change the scan type to analog or digital
- Scan for channels and get access to your favorite local program.
Related Products
Indoor digital TV antenna is one tool that placed inside your home or your vehicle to capture the free and high-definition television signal broadcast by local TV stations.

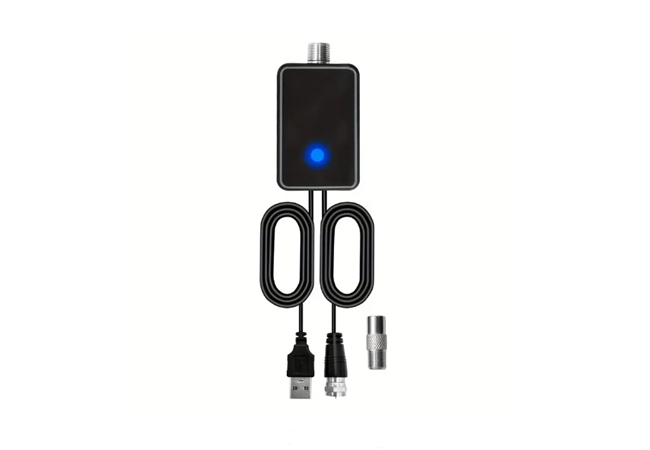

Because of the amplifier, it needs 3-5V DC power for normal working.
Nope, how many channels depends on your local TV station, the amplifier just can improve the signal strength on the equal condition with the no-amplifier antenna.
Yes, but you have to check the Smart TV that whether it comes with USB power output(3-5V).
Yes, absolutely, but whether you can get the HD or 4K on your screen depends on the tuner inside your TV and what your local TV stations are broadcasting.
Place the TV antenna near the window facing the broadcasting towers .
Yes, we accept customized OEM orders as customers’ requests, like logo, packing and so on.
Yes, we accept small orders from customers, also with OEM & ODM services.
