4G LTE Fiberglass Omnidirectional Outdoor Antenna
This is a 4G LTE fiberglass omnidirectional outdoor antenna with 4dBi peak gain.
- Omnidirectional Radiation Pattern
- Covers 2G/3G/4G bands
- Fiberglass Enclosure
- 4dBi Peak Gain
- IP65 Rating
- N Male or N Female Type Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | 4G Outdoor Antenna |
| Frequency Range | 698-2700MHz |
| Peak Gain | 4 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.5 |
| Polarization | Vertical (Linear) |
| Radiation Pattern | Omni Directional |
| Connector Type | N Female or N Male |

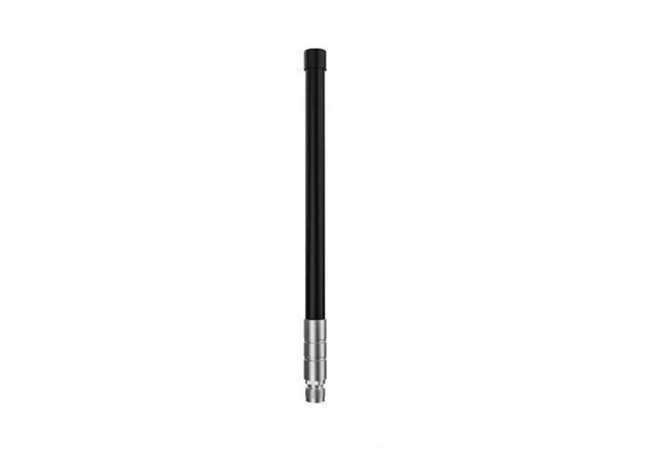

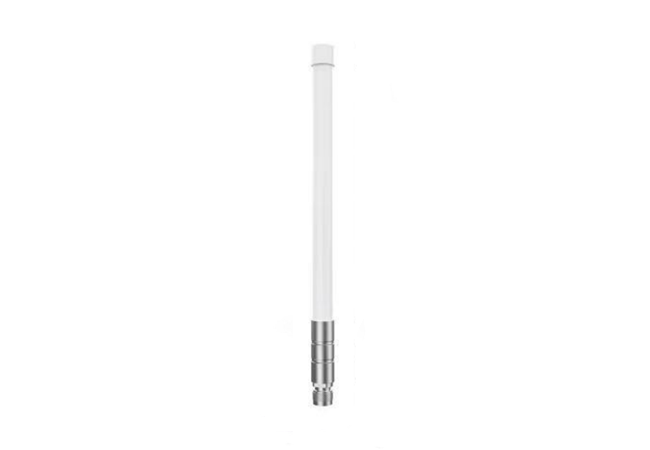

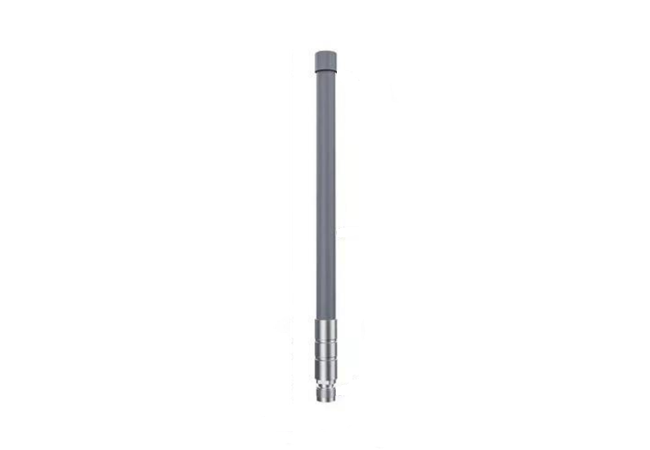

| Radome Color | Grey (default) / White / Black |
| Packing | PE Bag |
It is a fiberglass 4G LTE omnidirectional outdoor antenna which can be operated from 698-960MHz to 1710-2700MHz bands on 4dBi peak gain.
The internal struction is made by collinear dipole array, which makes it ideal for outdoor application with high performance and high efficiency.
Its omnidirectional radiation pattern can provide long range coverage by max input power of 50W.
4G Outdoor Antenna Features

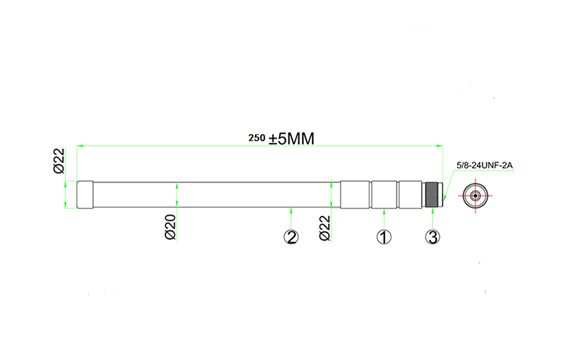

This 4G omnidirectional outdoor antenna has a compact size by 250mm in length and 20mm in diameter, which allows itself can be mounted conveniently by bracket or pole (U-bolt).
The fiberglass enclosure with IP65 rating enables this outdoor antenna to be used in harsh weather environments.
Its main working bands is between 698MHz to 960MHz, and 1710MHz to 2700MHz.
N Male or N Female connector types are optional.

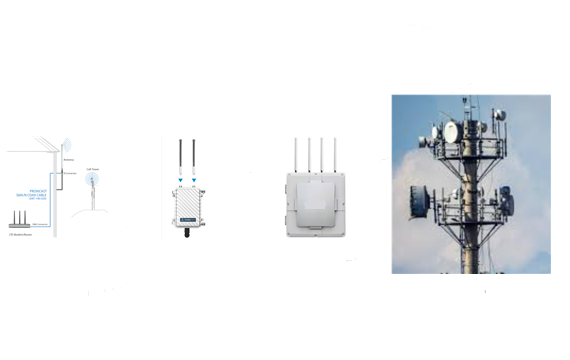

4G Outdoor Antenna Applications
With collinear dipole array struction, its key applications including:
4G Routers and Modules
Fixed Wireless Access (FWA) for Home
Enhanced Mobile Coverage
Industrial Internet of Things (IoT) and M2M
Mobile Applications (Vehicles)
Cellular Signal Booster
