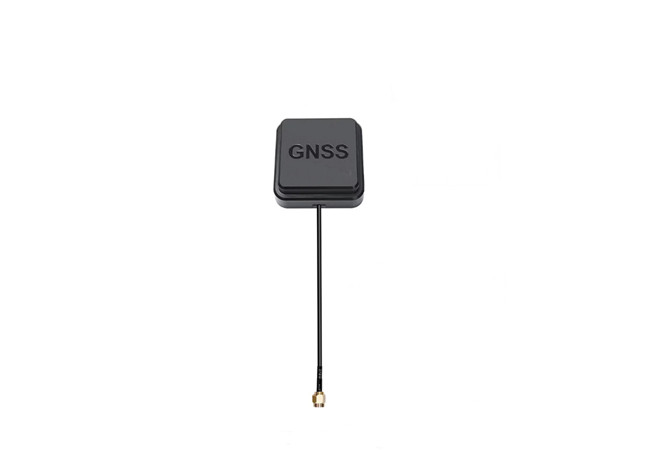

Active Magnetic/Adhesive Dual Band GNSS Antenna
This is a high gain compact GNSS antenna covering low band 1176.45MHz and high band 1561.098-1602MHz.
- GPS and GLONASS Antenna
- Compact and Low Profile
- Magnetic Mount or Adhesive Mount Optional
- 28dBi Peak Gain
- Cable: 3m RG174
- SMA Male Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | GNSS Antenna |
| Frequency Range | 1176MHz (L5) , 1575MHz(L1) |
| Peak Gain | 28 dBi |
| Impedance | 50 Ohm |
| VSWR | < 2.0 |
| Polarization | RHCP |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male |
| Radome Color | Black |
| Packing | PE Bag |

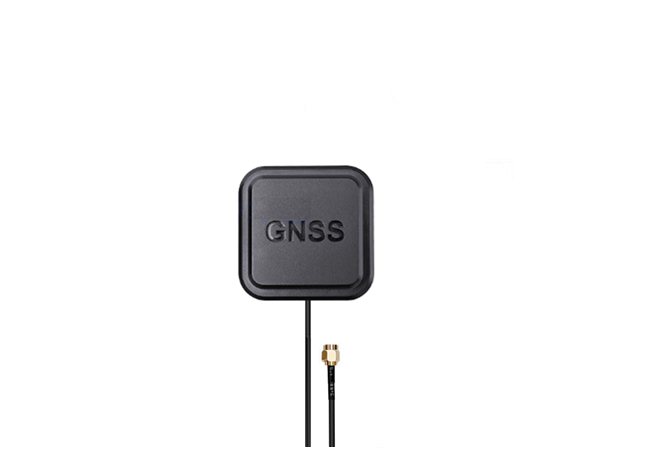

This is one high performance and dual band GNSS antenna designed to deliver excellent positional accuracy in GPS bands, L1 (1575.42MHz) and L5 (1176.42MHz).
With better axial ratia performance across the hemisphere, this type of active GNSS antenna enhances GPS signal stability and reliability.

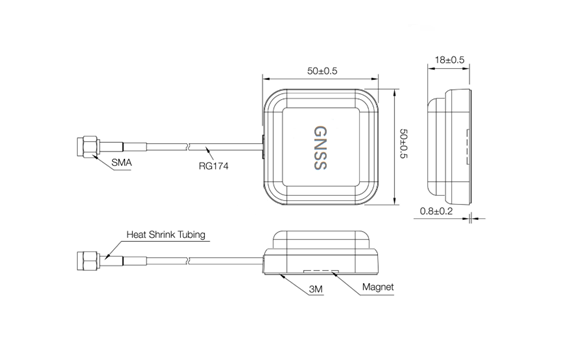

Active GNSS Antenna Features
This type of dual band GNSS antenna is housed in 50*50 mm enclosure, and it has IP65 rated.
It is built in high gain LNA with pre-filter, which makes itself can provide superior sensitivity and positioning accuracy.

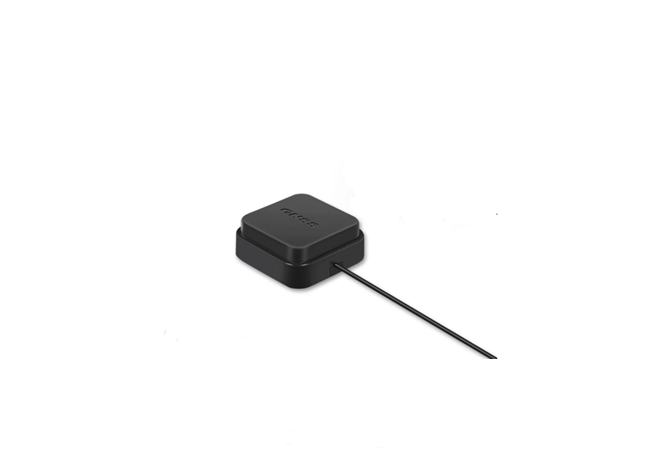

With low profile thickness, it has two types of mountings options, magnetic or adhesive.
Usually, it comes with 3m RG174 cable and standard SMA Male connector. Also, the cable lengths and the connectors are customizable.
Active GNSS Antenna Applications
Due to its excellent positional accuracy, it can be used for GNSS positioning , tracking and timing systems, and its applications including:
Vehicle Tracking and Fleet Management
Precision Agriculture and Surveying Equipment
Timing Synchronisation
Drone Navigation and Positioning
