Embedded 1575.42MHz GNSS Active Antenna

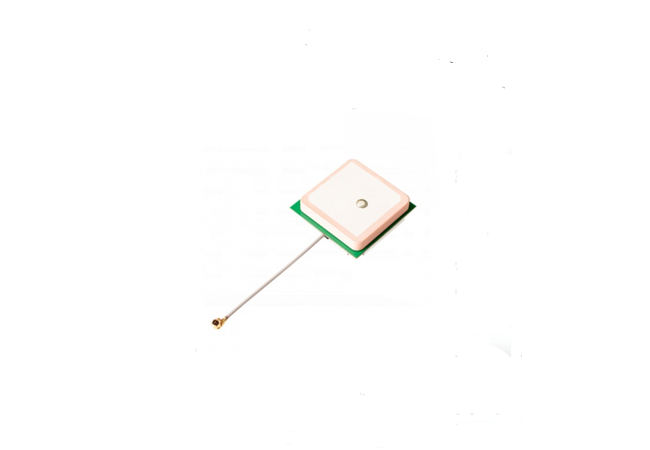

This is one embedded active GPS antenna which can be mounted in communication devices for receiving satellite signals.
- GPS / GALILEO (1575.42MHz)
- 25*25*8mm (Size)
- RHCP Polarization
- 28dBi Peak Gain
- Active Patch Design
- MHF 1 (IPEX) Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Active Antenna |
| Frequency Range | 1575-1602MHz (GPS,GALILEO,QZSS)
1602MHz (GLONASS) |
| Peak Gain | 28 dBi |
| Impedance | 50 Ohm |
| VSWR | < 2.0 |
| Polarization | RHCP |
| Radiation Pattern | Hemispherical |
| Connector Type | IPEX (U.FL) |
| Operating Voltage | 2.7-5 V |
| Packing | PE Bag |
This GPS patch antenna has a excellent performance. also it has a small form factor, which makes it ideal for industrial or consumer device for GPS signal transmission.
With latest generation pre-amplifier, it is designed to achieve 28dBi high gain compared with other normal ones of 25dBi.

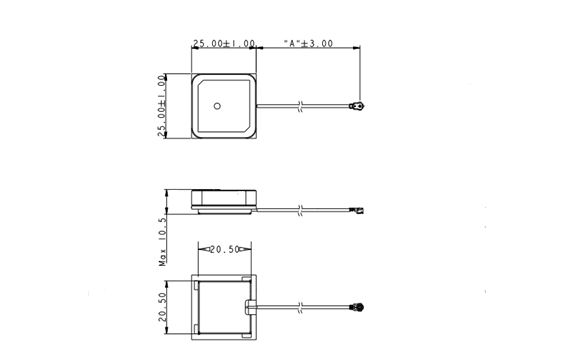

Active GNSS Antenna Features

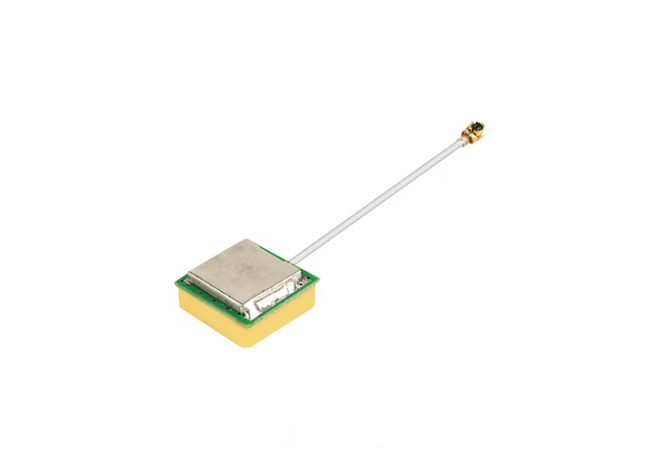

This active GNSS antenna is designed for GPS (1575.42MHz) operating bands. It combines a 25*25*4mm ceramic patch antenna with a two-stage LNA and a front-end SAW filter with RG1.13 coaxial cable or RG1.37 coaxial cable.
The high gain is achieved from a current consumption between 10-14 mA at 3.3V.
With common standard U.FL connector, it is an ideal antenna solutions for most of GPS receivers.
Active GNSS Antenna Applications
The low profile feature of this active GNSS antenna makes it ideal for a variety of applications, including:
Handheld & Portable Navigation Devices
Fleet Management
IoT Devices
E-Bike & Automotives
Asset Tracking
