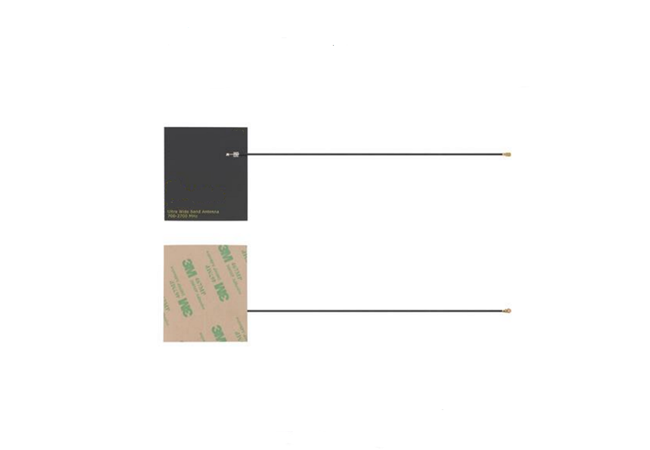

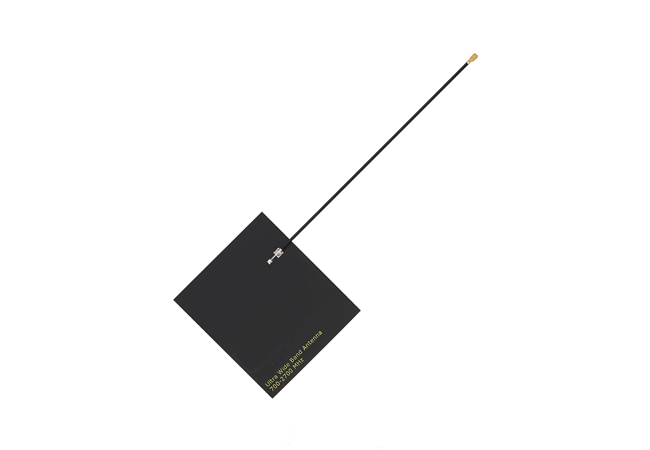

Embedded Cellular 4G LTE Ultra Wideband Antenna
This is a flexible PCB ultra wide band antenna is designed for operating all cellular communication bands in IoT field.
- Flexible Wideband Antenna
- 4G LTE 700-2700MHz
- Linear Polarization
- 3dBi Peak Gain
- 67*58*0.2mm in Size
- IPEX Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Wide Band Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Linear |
| Radiation Pattern | Omni Directional |
| Connector Type | IPEX |
| Radome Color | Black |
| Packing | PE Bag |

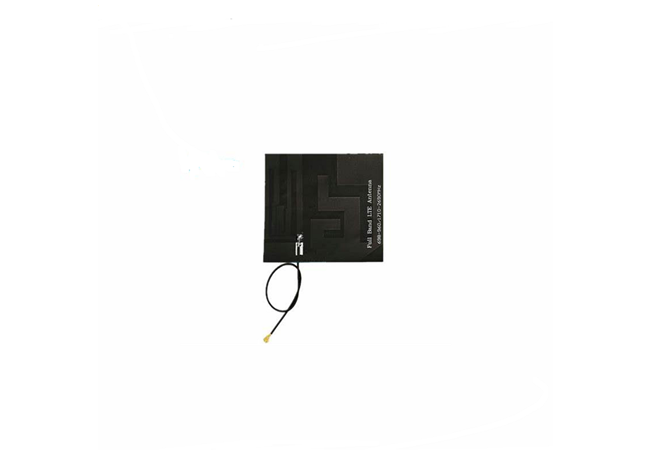

This flexible antenna is designed to cover all 4G LTE bands from 700MHz to 2700MHz, also it can be used in 2G and 3G. It has a compact size with quite high gain, and its efficiency is up to more than 60%.
Its ultra wide band factor makes itself has a good performance no matter whether the surface is thick or thin.
LTE Stubby Antenna Features
This flexible PCB antenna usually comes with standard IPEX connector and RG1.13 or RG1.37 coaxial cable.

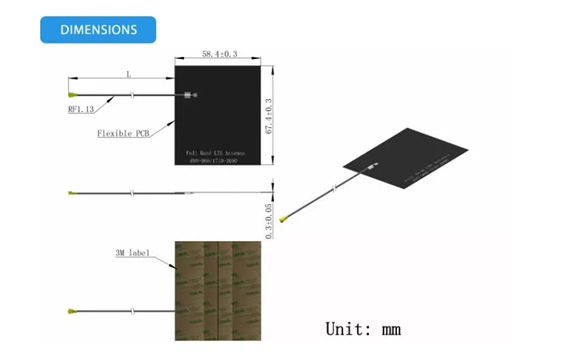

It has a compact size by 67*58mm, the main antenna body is made from flexible polymer material, which is ultra thin with 0.2mm in thickness. The high efficiency can be worked across 4G and 3G bands.
It is installed by easy-peel sticker through adhesive back of 3M.

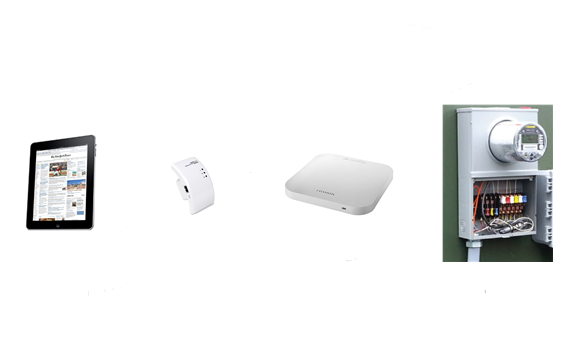

LTE Stubby Antenna Applications
This flexible PCB antenna can be used in cellular, transportation, industrial wearable, smart city, smart agriculture, home automation. The typical applications:
Cellular Mobile Devices (smartphone,tablet, hotspot)
Fixed Wireless Access (FWA) and Cellular Home Internet
Internet of Things (IoT) and Machine-to-Machine (M2M)
Public Safety and Mission-Critical
In-Vehicle Connectivity (Telematics)
