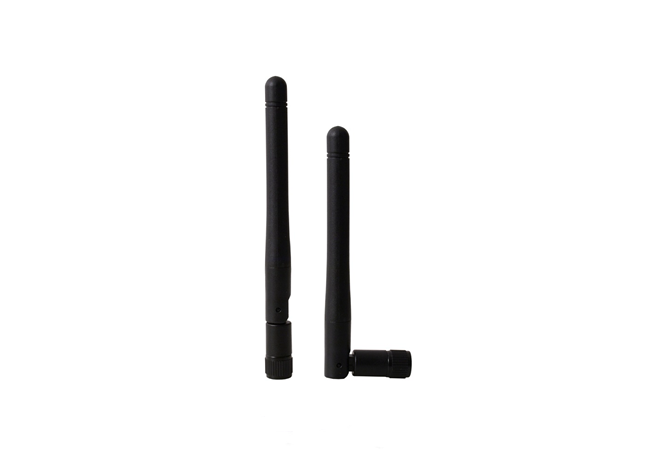

External 2dBi 5.8GHz Folded Dipole Antenna
This is a single band WIFI folded dipole antenna at 5.8GHz with RP SMA Male connector.
- 5.8G Dipole

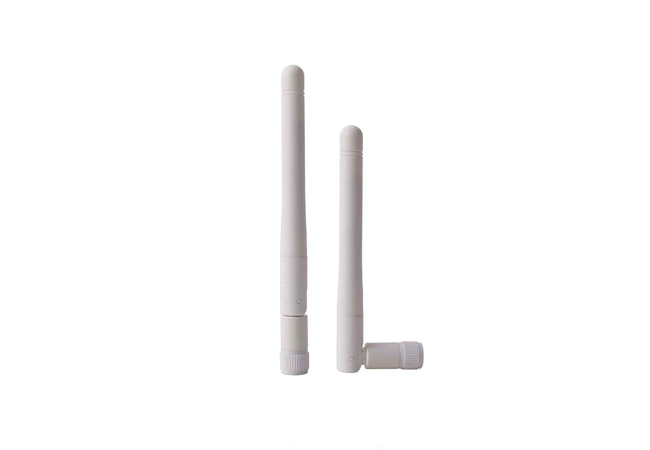

- Hinged Rotatable
- Vertical Polarization
- 2dBi Peak Gain
- TPE Housing
- RP SMA Male Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Folded Dipole Antenna |
| Frequency Range | 5150-5850MHz |
| Peak Gain | 2 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | RP SMA Male or SMA Male |

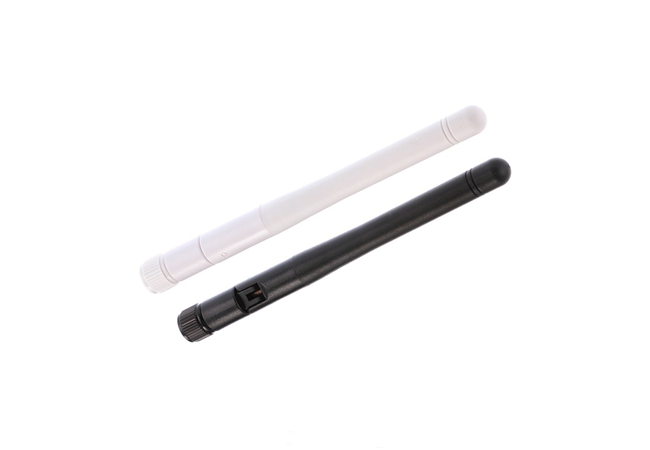

| Radome Color | Black / White (optional) |
| Packing | PE Bag |
This is a external high performance 5.8GHz folded dipole antenna by 2dBi high gain with omni directional radiation pattern which also has high efficiency up to 60% from 5750MHz-5850MHz.
It usually comes in a small form factor which has quite light weight and easy to install.
5.8G Dipole Antenna Features

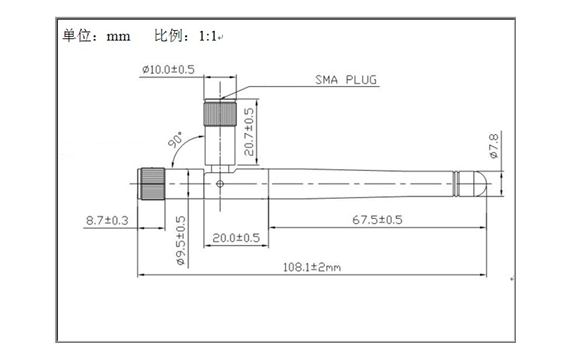

This 5.8G folded dipole antenna is at just 108mm in length and 10mm in diameter which has an omnidirectional radiation pattern.
The peak gain of 2dBi at 5.8G band ensures itself constant reception and transmission.
The housing is designed by high quality TPE material, and it can be rotated to 90° degree.

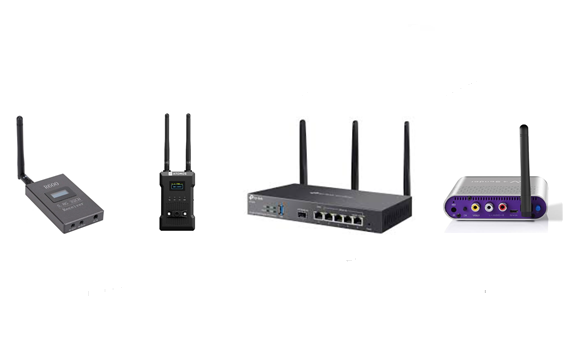

5.8G Dipole Antenna Applications
Its dipole internal design makes it ideal for 5.8GHz wireless applications such as Wireless LAN. So the key applications of 5.8GHz folded dipole antenna including:
WIFI (IEEE 802.11a/n/ac/ax)-Routers / Gateways
FPV (First-Person View) Drone Video Transmission
Industrial Wireless Video Links
5.8G ISM Band Applications
