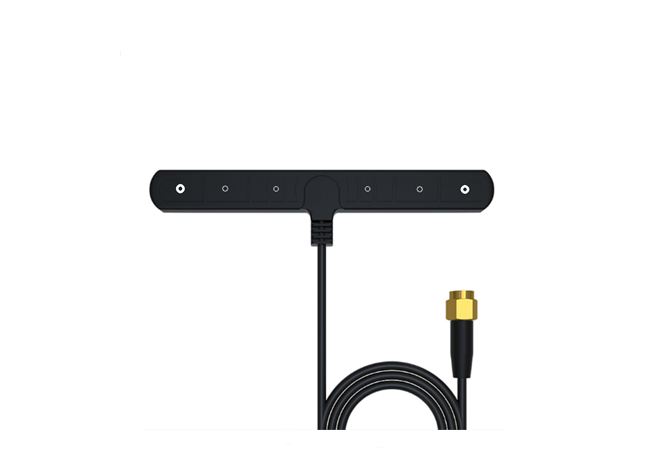

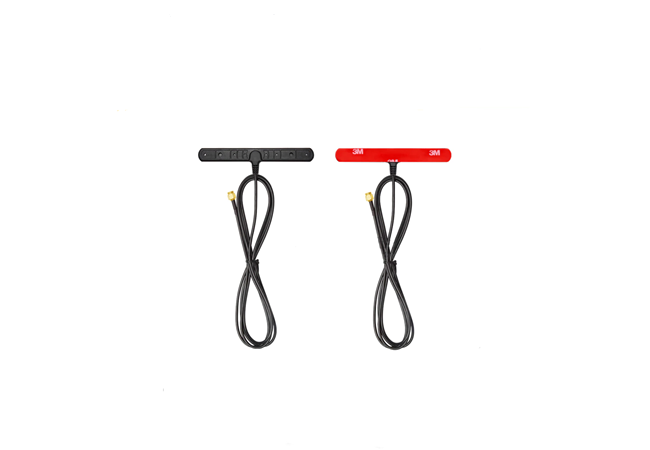

External 4G LTE Adhesive Mount Dipole Antenna
Designed for providing a long range frequency range from 700-2700MHz with 3m RG174 coaxial cable.
- Covers all bands of 4G LTE
- High performance and high efficiency
- T Bar Adhesive Mount
- 3m RG174 Coaxial Cable
- Ground plane independent
- IP65
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | 4G Dipole Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA |
| Radome Color | Black |
| Package | PE Bag |
This 4G LTE antenna supports all common frequency range from 700MHz to 2700MHz makes it ideal for LTE, CAT-M1 and NB-IOT applications as well as 2G and 3G systems.
It is popular for in-vehicle communications as both tracking systems and cellular car kits.

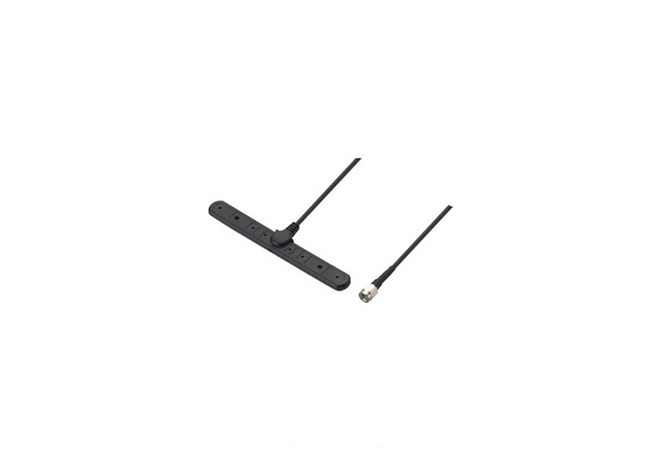

4G External Antenna Features
This 4G external antenna covers GSM/CDMA/PCS/DCS/UMTS/LTE and designed to placed on glass or smooth plastic, also, the IP65 rated waterproof characteristic makes it ideal for using indoor or outdoor.

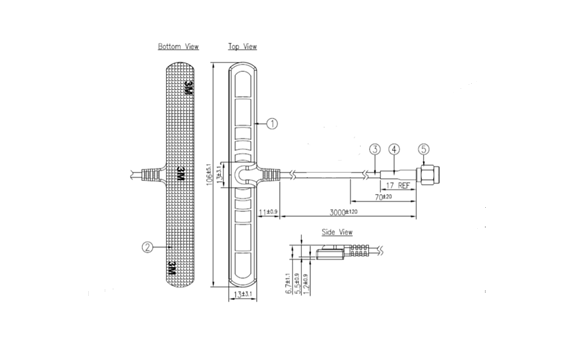

It has a low profile at 6.7mm and compact size of 106*13mm,usually comes with double side sticker for permanent and secure fix to vehicle communications.

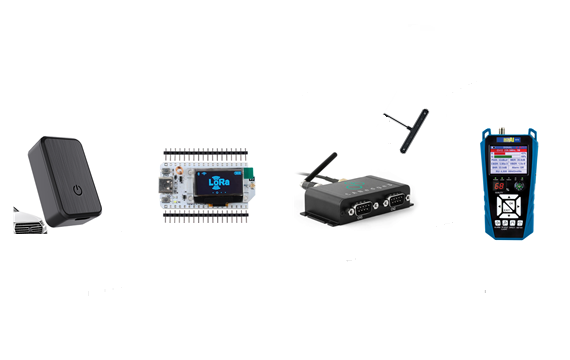

4G Dipole Antenna Applications
This durable and low profile antenna characteristics makes it convenient install in the automotive and telematics industry, so the major applications:
Tracking systems
Telematics
Metering
Internet of Things
