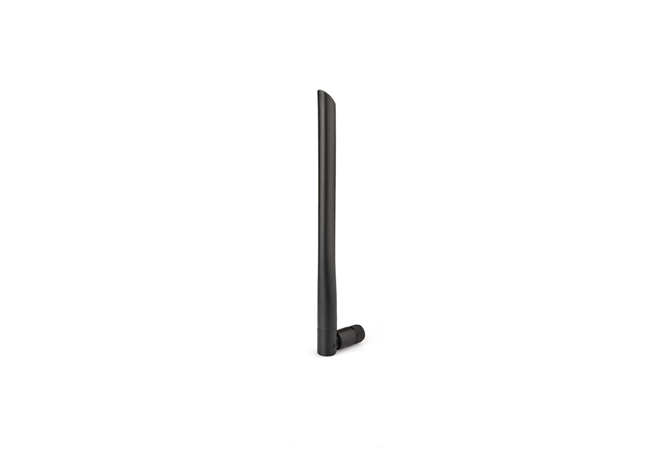

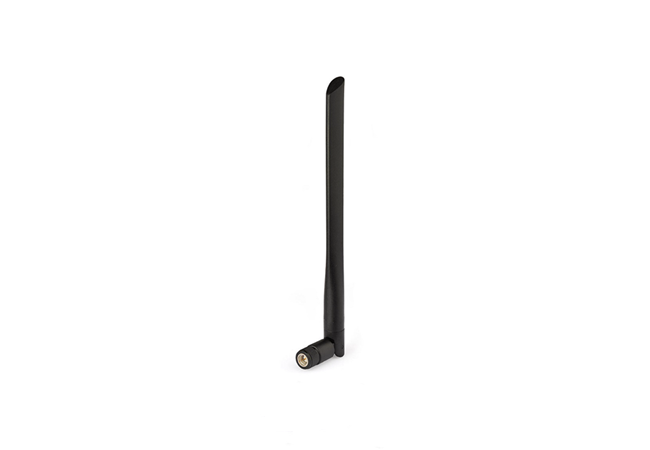

External 5.8GHz 5dBi Terminal Mount Dipole Antenna

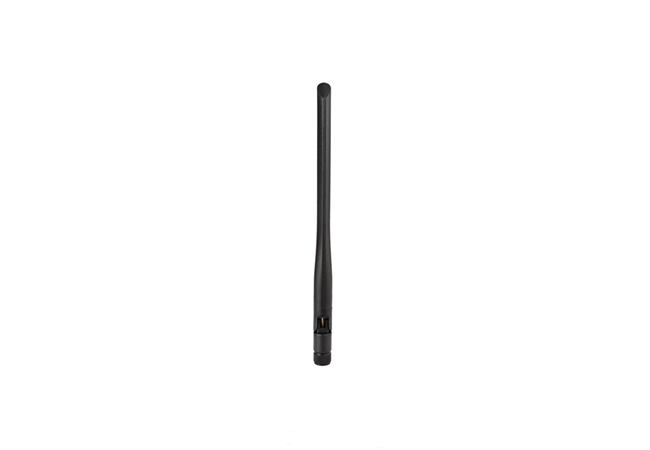

This is an external wireless LAN 5.8GHz whip antenna with 5dBi high gain and a very low VSWR.
- Omni Directional Radiation Pattern
- 5dBi Peak Gain
- 5.8GHz Frequency Operation
- High Efficiency up to 70%
- 198mm in Length
- SMA Male or RP SMA Male Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | 5.8G Dipole Antenna |
| Frequency Range | 5150-5850 MHz |
| Peak Gain | 5 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male or RP SMA Male |
| Radome Color | Black |
| Package | PE Bag |
With up to 5dBi high gain, this type of terminal mount dipole antenna performance is quite good, and by Hinged-and-Swivel design, it is one better choice for indoor use.
This 5.8GHz terminal mount WIFI dipole antenna has up to 70% high efficiency, so it has an omnidirectional radiation pattern at 5.8GHz band with superior performance and reliability.
5.8G WIFI Antenna Features

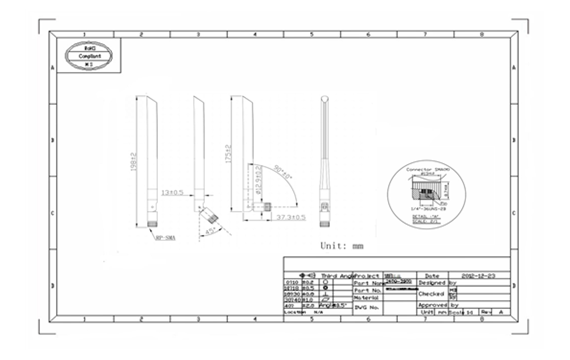

This 5.8G dipole antenna has 198mm in length and 13mm in diameter, by TPE enclosure, it can be mounted at three angles, as 0° degree, 45° degree and 90° degree with Hinged-and-Swivel SMA Male connector or RP SMA Male connector.
Also, some types of RF connectors are customizable, like BNC connector, TNC connector and N connector.

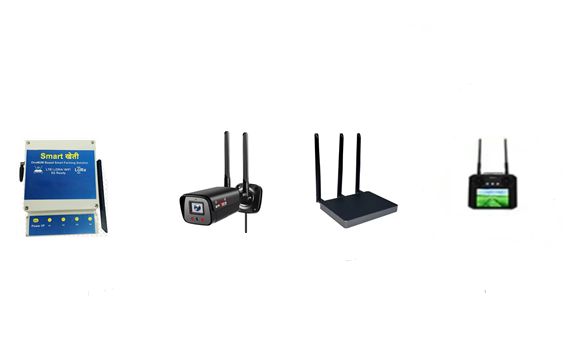

5.8G WIFI Antenna Applications
This 5.8G dipole antenna is ideal for applications such as Bluetooth, BLE, Zigbee and Wireless LAN. Its typical applications include:
Smart Home
Gateways
Routers
Agriculture
