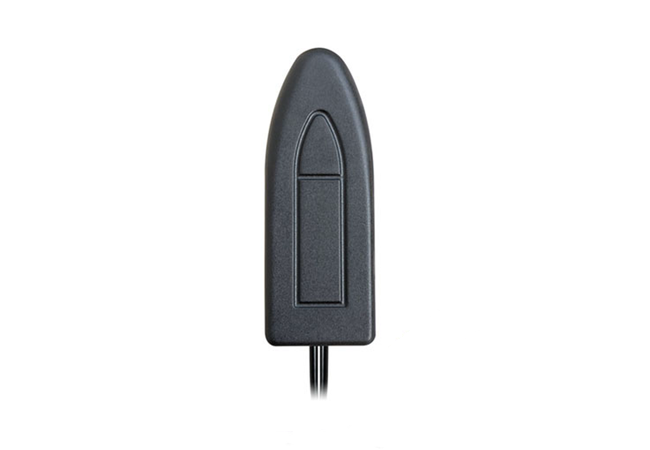

External Cellular/4G and GPS/GLONASS Adhesive Mount Antenna
This is a GPS/GLONASS & 4G LTE combination antenna which can provide high performance and cellular solution in one compact size.
- Cable 1: Cellular /LTE (698-2700MHz)
- Cable 2: GPS / GLONASS (1575-1606MHz)

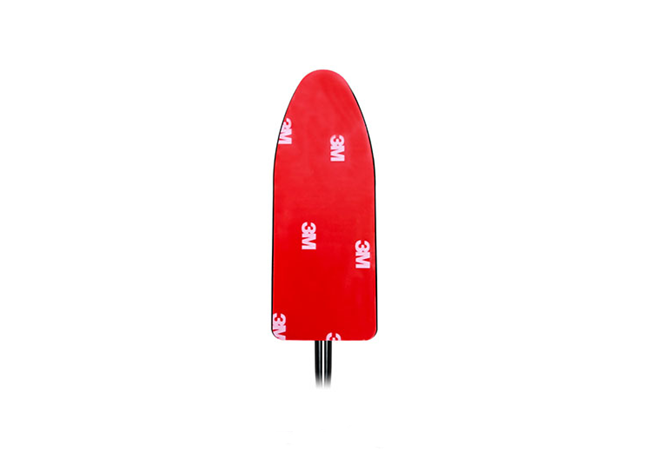

- Adheisve / Magnetic Mount
- IP65
- Ground plane independent
- Cable length customizable
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | External GPS 4G Combination Antenna |
| Frequency Range | 700-2700 MHz / 1575-1606MHz |
| Peak Gain | 3 dBi / 28 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.2 |
| Polarization | Vertical / RHCP |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA / FAKRA |
| Radome Color | Black |
| Package | PE Bag |
This GPS / GLONASS & 4G adhesive mount antenna is one combination antenna which can provide 4G LTE signal and active GPS/GLONASS signal.
With robust ABS plastic enclosure, it is ideal for most demanding environment chanllenges.

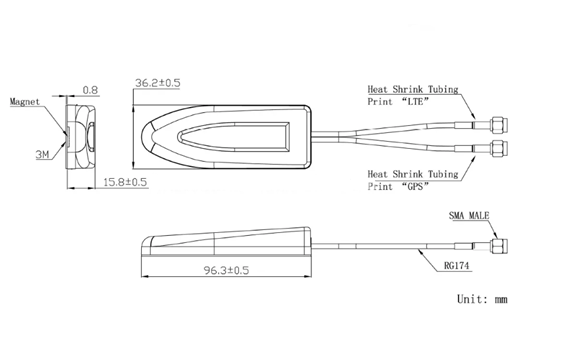

Usually, it comes with 3m RG174 coaxial cable and SMA Male connector, also, the cable length and the connector types are customizable on requests.

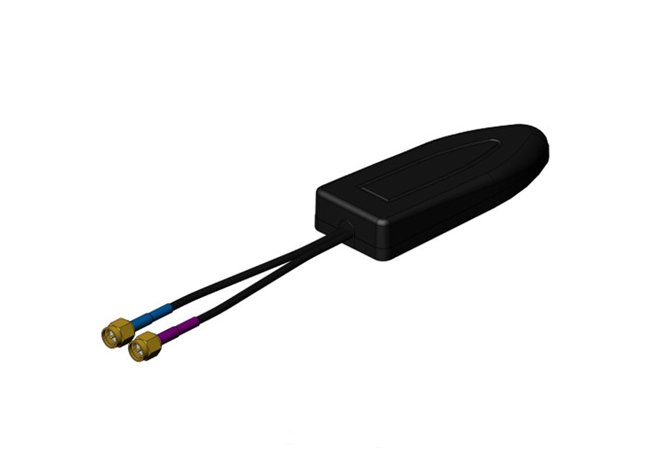

GPS/ GLONASS 4G Antenna Overview
This is a new type of low profile antenna which can be used in IoT / M2M, Smart Meter, Transportation, Marine and other Agriculture markets.
It consists of 2-in-1 antenna system

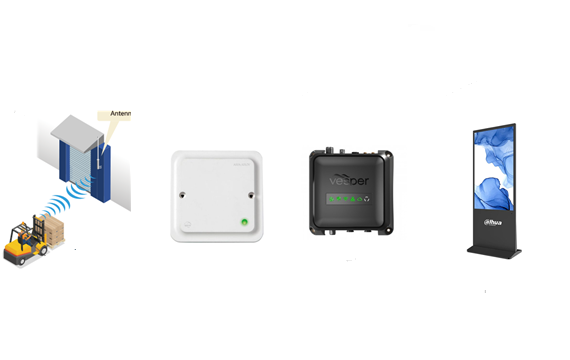

GPS / 4G Combination Antenna Applications
This GPS / GLONASS and 4G LTE combination antenna provides quite outstanding performance and high quality for some applications:
Telematics
Remote Monitoring
Fleeting Management
IoT
Asset Tracking
Security and Surveillance
