External Dual Band WIFI 5dBi Terminal Dipole Antenna
This is a Dual Band 2.4&5.8GHz WIFI terminal mount dipole antenna which has a 5dBi high gain with SMA connector.
- Dual Band 2.4/5.8GHz Band Operation
- 5dBi High Gain
- High Efficiency up to 80%
- SMA Male or RP SMA Male Optional
- Height: 198 mm
- Diameter: 13 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | WIFI 2.4/5.8GHz Antenna |
| Frequency Range | 2400-2483/5150-5850MHz |
| Peak Gain | 5dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male or RP SMA Male |
| Radome Color | Black |
| Package | PE Bag |

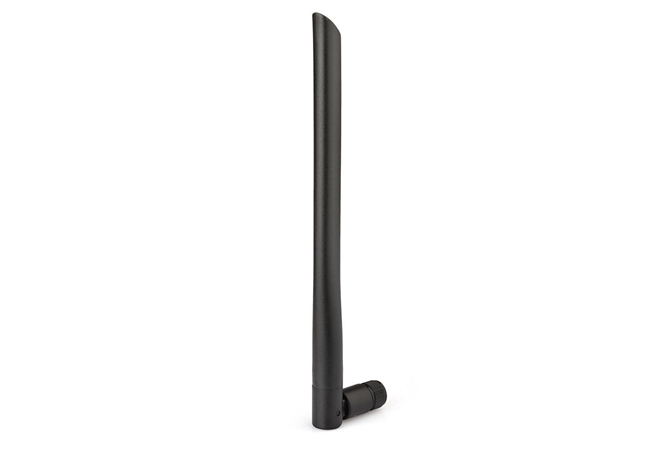

This is a 2.4GHz/5.8GHz omni-directional terminal mount dipole antenna. 198mm in length and 13mm in diameter, the swivel and hinged SMA connector can make it positioned at any angles. Also, it is ideal for many applications such as Zigbee,Bluetooth, BLE and wireless LANs.
This Dual Band WIFI omni directional antenna is designed for superior performance and reliability, the perfect radiation pattern and high efficiency enable it can work quite well on 2.4GHz or 5.8GHz bands.

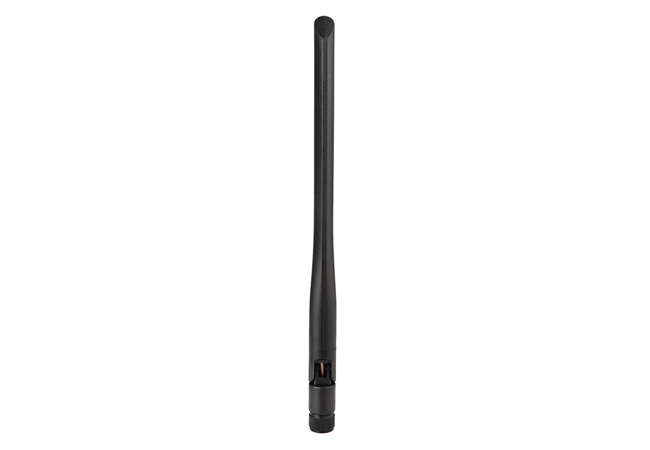

Dual Band WIFI Antenna Dimensions
This is a 2.4 & 5.8GHz Dual Band WIFI terminal mount dipole antenna with 198mm in height and 13mm in diameter.
The robust TPE enclosure with SMA connector can be positioned at straight, 45 degree or 90 degree.
Meantime, some RF connectors are optionals, including, SMA Male connector, BNC Male connector, TNC Male connector and N Male connector.
Dual Band WIFI Antenna Datas
With 5dBi high gain, this omni directional Dual Band WIFI Antenna can performs quite well, especially in Peak Gain, Efficiency and Return Loss.
Peak Gain: 5.38 dBi
Efficiency: 80 %
Return Loss: – 10 dB
So, all characteristics make it cost-effective and high performance for any indoor applications.
Dual Band WIFI Antenna Applications
According to this dual band WIFI antenna can be used for Bluetooth, BLE, Zigbee and Wireless LANs, some typical applications as followings.
Smart Home Networks
Gateways
Modems or Routers
Connected Agriculture
Mesh Networks
