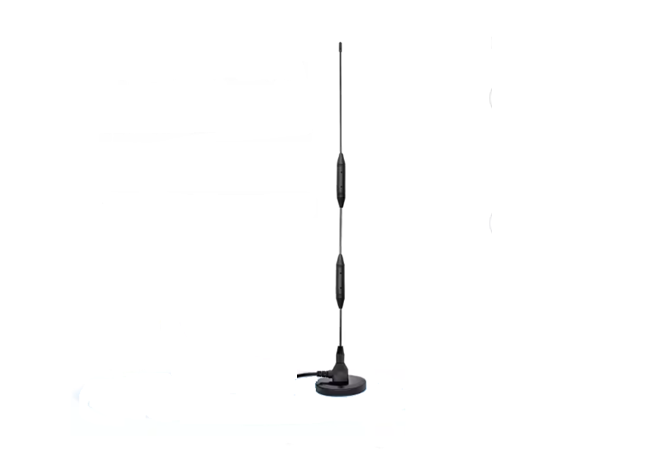

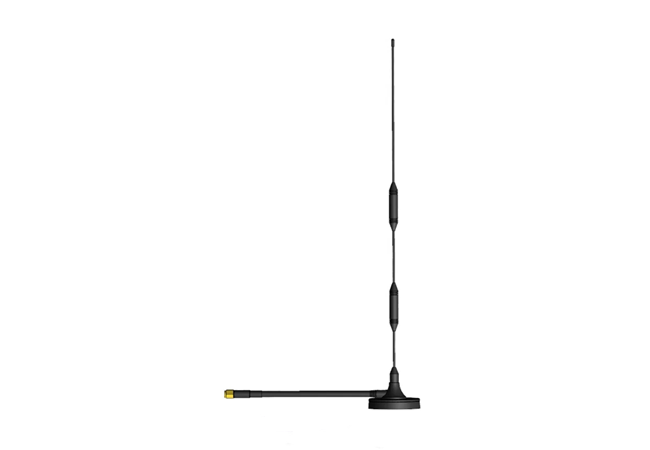

External Magnetic Mount Omni Directional 4G LTE Antenna
This magnetic mount 4G LTE antenna is a good broad coverage from 700MHz to 2700MHz, including WIFI band.
- Operating in 698-2700MHz
- 5dBi Peak Gain
- Magnetic Mount
- Omni Directional
- Linear Polarization
- Cable length and connector customizable
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Magnetic Mount 4G LTE Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 5 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA / FME / BNC |
| Radome Color | Black |
| Package | PE Bag |
This is a high gain omni directional 4G LTE antenna ideally suited for 4G LTE cellular devices.
It supports on all 4G worldwide cellular network frequencies, specailly coverage for WIFI (Bluetooth and Zigbee).
The strong magnetic base is for GSM 900MHz / 1800MHz and 3G (UMTS 2100MHz).
Magnetic Mount 4G LTE Antenna Features
This strong magnetic base is made by Ferrite which can be mounted on any metal plate.
The 4G LTE antenna structure makes it 5dBi high gain and omni directional radiation pattern, and it can deal with some harsh environments.
Also, RG174 or RG58U coaxial cable is availabe with various types of connectors.

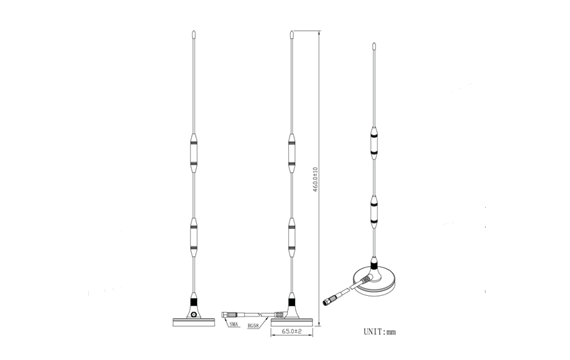

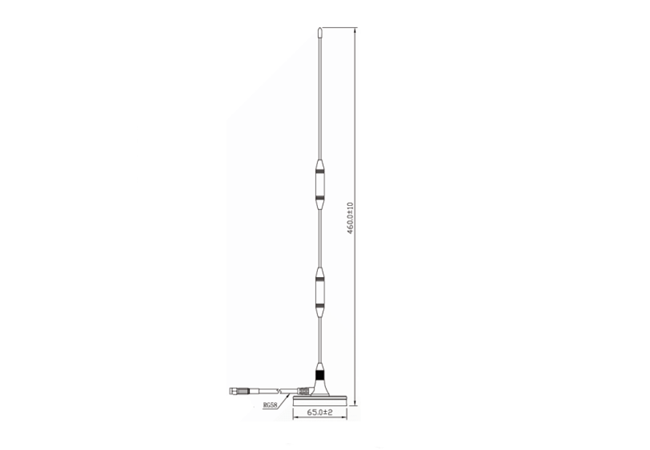

It has 46cm in height and the magnetic base’s diameter is 62mm.

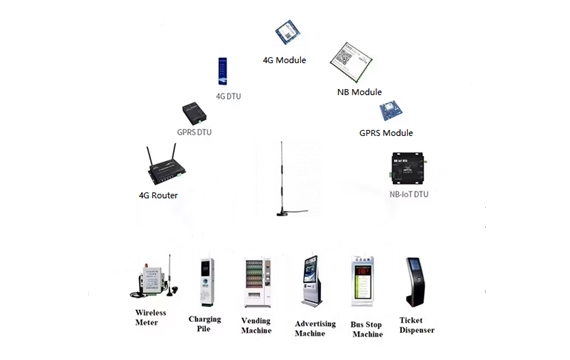

High Gain 4G LTE Antenna Applications
This high gain omni directional 4G antenna is compatible with some wireless applications, its low broadband VSWR, and impedance matching 50 ohm, makes it suitable for all the below applications.
4G LTE networks
Gateways
LoRaWAN Access Point
IoT / M2M
