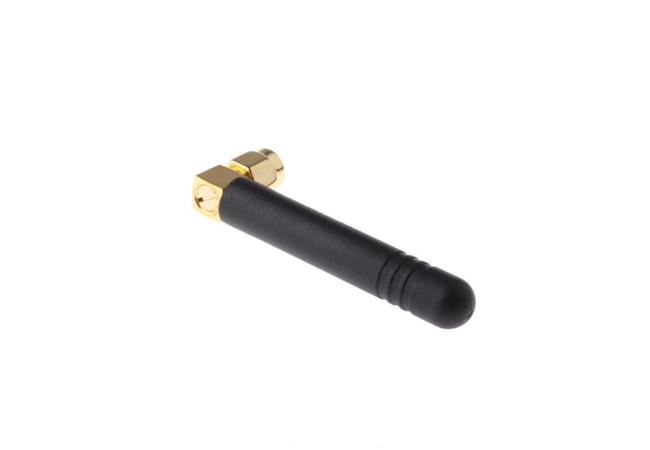

External SMA Connector Mount 868MHz Monopole Antenna
This a high-efficiency SMA Connector Mount ISM/Sigfox/LoRa 868MHz monopole antenna.
- ISM/Sigfox/LoRa 868MHz Band
- High Efficiency up to 53%
- RA SMA Male Connector
- Height: 57 mm
- Diameter: 8 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | ISM/Sigfox/LoRa 868MHz |
| Frequency Range | 868 + / – 3 MHz |
| Peak Gain | 0 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | RA SMA Male |
| Radome Color | Black |
| Package | PE Bag |

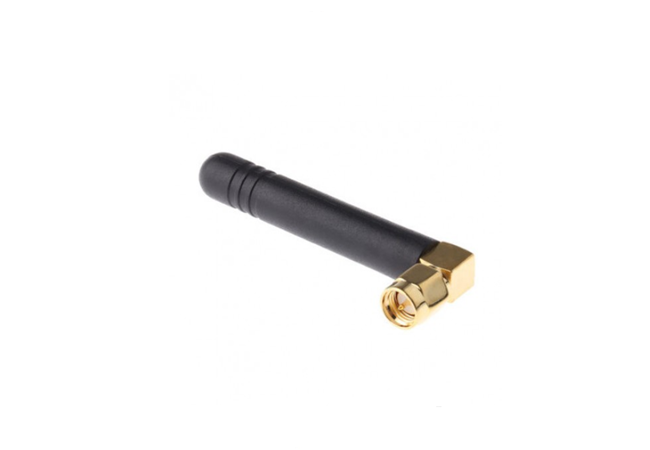

This is an external SMA connector mount ISM/Sigfox/LoRa 868MHz monopole antenna, which is designed for 868MHz band, also offering small form factor, high performance and stable connectivity for ISM, Sigfox and LoRa applications. It is ideal for public safety, M2M applications, smart meters and mesh networks.
This omni directional terminal mount 868MHz monopole antenna is 57mm in length and 8mm in diameter. It can be mounted straight due to its RA SMA Male connector.

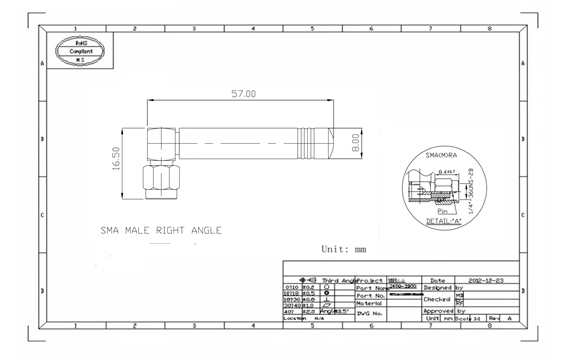

868MHz Antenna Dimensions
This is a omni-directional LoRawan 868MHz monopole antenna at 57mm in length and 8mm in diameter. It is manufactured by TPE enclosure which makes it quite light in weight. Due to its RA SMA Male connector, it can be mounted directly to 868MHz devices.

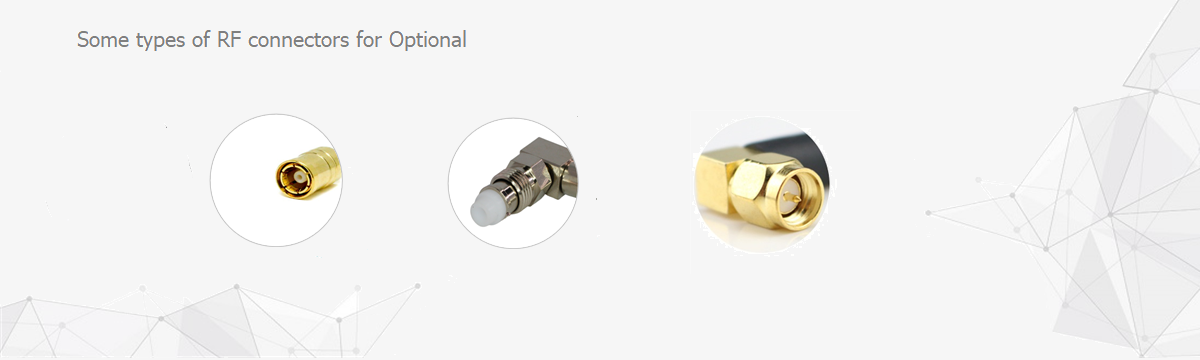

This antenna connector type can be customizable, like, RA SMB Female connector, SMA Male connector,FME Female connector and also RA FME Female connector.
868MHz Antenna Datas
This 868MHz antenna has some reliable figures, like, Return Loss, Effiency and Peak Gain.
Return Loss: -15 dB
Efficiency: Up to 53%
Peak Gain: 0 dBi

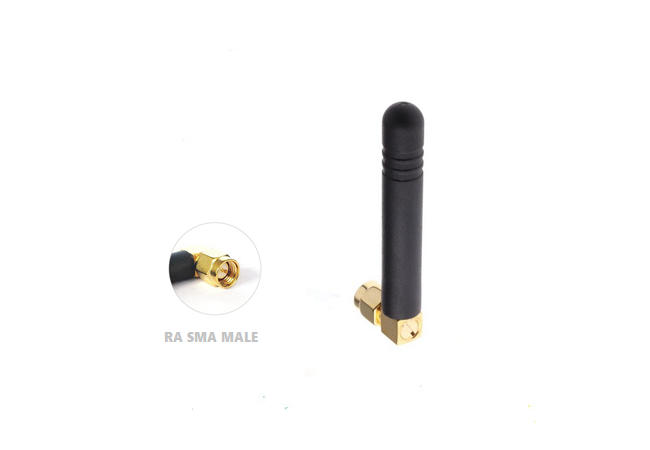

This omni directional 868MHz monopole antenna features a RA SMA Male connector as standard.

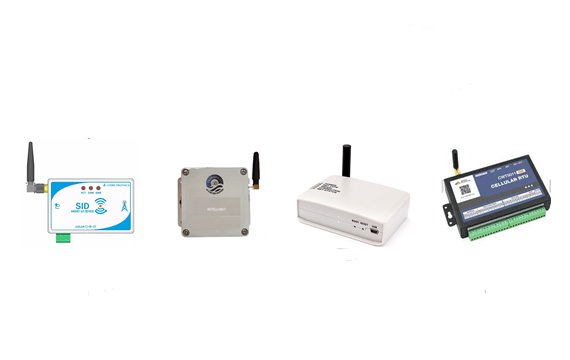

868MHz Antenna Applications
This ISM/Sigfox/LoRa 868MHz monopole antenna that can be used to transmit and receive wireless signals at 868MHz frequency band.
- IoT Devices
- Remote Monitoring Systems
- M2M Telemetry
- Wireless Sensor Networks
- RFID Systems
