External SMA Omni Directional 4G Dipole Antenna
This is an omni directional antenna that provides broad coverage from 698-960MHz to 1710-2700MHz.
- 700-2700MHz Wideband Operation
- 3.8 dBi Peak Gain
- LTE 700MHz Compatible
- High Efficiency up to 58%
- Hinged and Swivel Type
- Ground Plane Independent
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Omni Directional 4G Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3.8 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.2 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA |

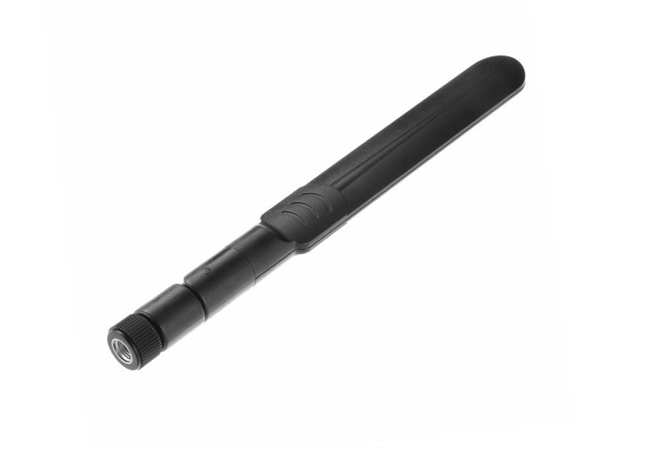

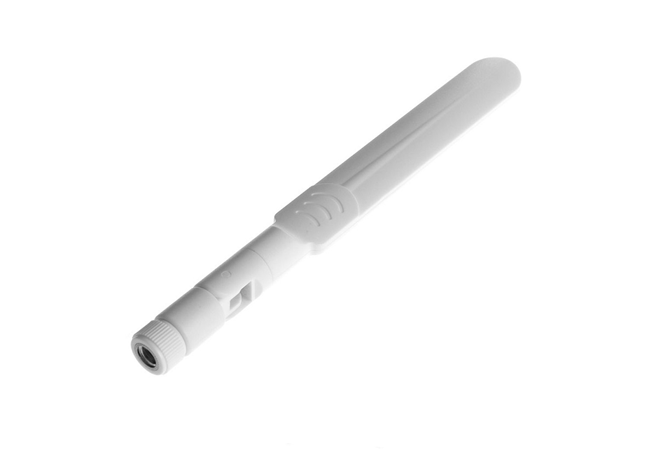

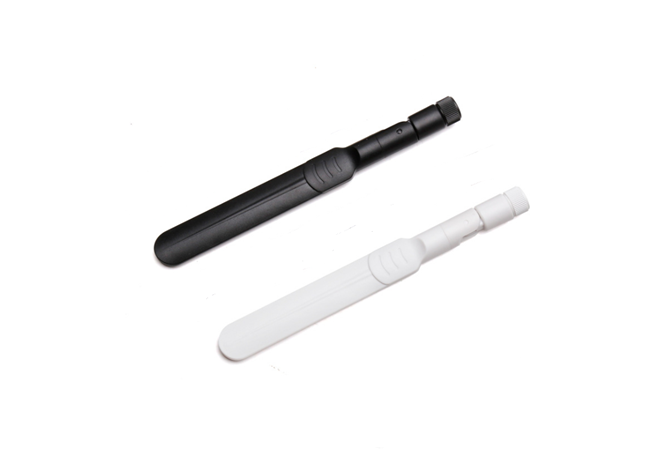

| Radome Color | Black or White |
| Package | PE Bag |
It is compatibel with most of 4G LTE, 3G and 2G networks.

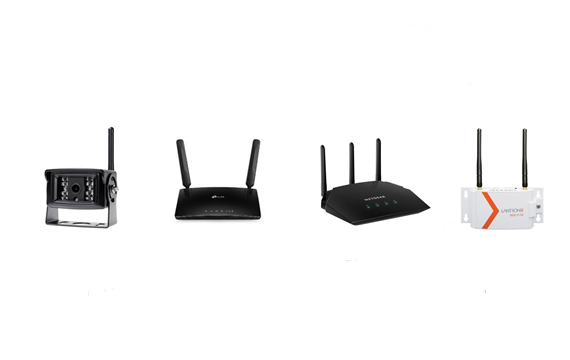

This high efficiency high gain omni directional antenna is ideally suited for Gateways, Routers, Access Points, Repeaters and other WLAN applications.

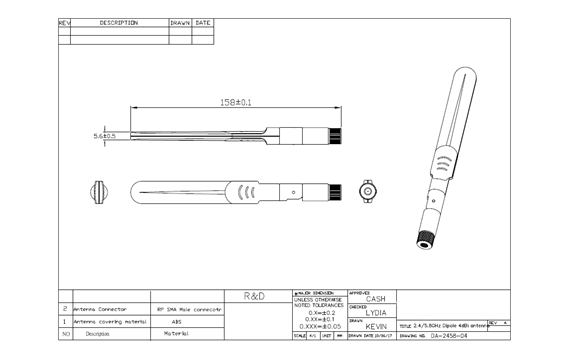

This antenna is 158mm in length and 13mm in diameter, featuring a hinged and swivel type of SMA connector for any vertical angles.
4G Dipole Antenna Features
LTE / GSM / CDMA / DCS / PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE / GPS / WIFI
This antenna is designed for NB-IoT and CAT M1 applications to provide high efficiency and covers all Cellular, 2.4GHz WIFI, ISM and LTE bands.
The antenna is an omni directional ultra wide band solution by ground plane independent for 360 horizontal transmisstion pattern.
Low Profile LTE Antenna Applications
This antenna offers an omni directional solution for some types of wireless devices, it is compatibel with most of applications, including:
Medical Applications
Home Automation
Smart Metering
M2M, Industrial devices
First Net
Healthcare
