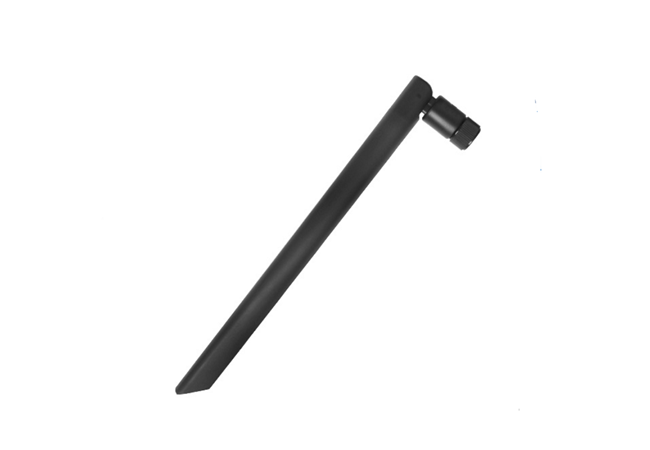

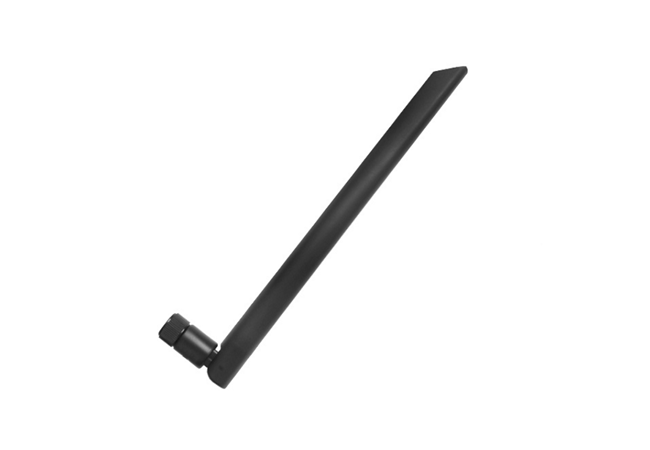

High Performance Terminal Mount 868MHz Antenna
This is an external high performance 868MHz terminal mount dipole antenna by 3dBi high gain.
- ISM 868MHz Band Operation
- High Efficiency up to 73%
- Hinged SMA Male Connector
- Height: 198 mm
- Diameter: 13 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | ISM 868MHz |
| Frequency Range | 868 + / – 3 MHz |
| Peak Gain | 3dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male |
| Radome Color | Black |
| Package | PE Bag |

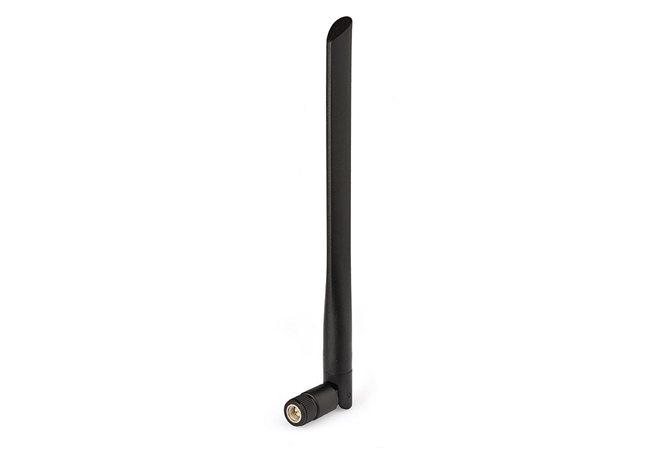

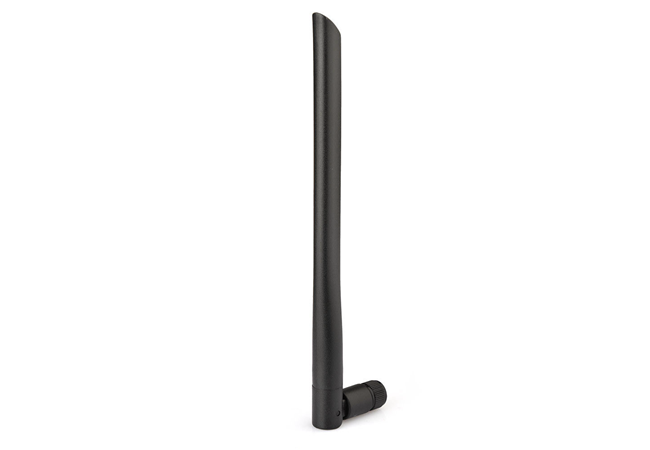

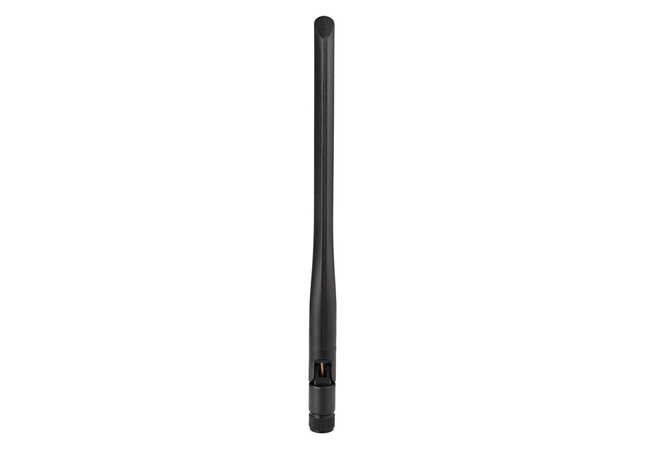

This omni directional terminal mount 868MHz antenna is 198mm in length and 13mm in diameter. It can be mounted straight or 90 degreee due to its hinged SMA Male connector.
With 3dBi high gain, it performs quite well in some typical applications, like：Smart Metering, Remote Monitoring, Industrial IoT, Wireless Sensor Networks.
The radome is manufactured by TPE and the other part by PC+PBT which makes it light at about 22g. Its swivel and hinged connector allows the antenna to be used in different directions.

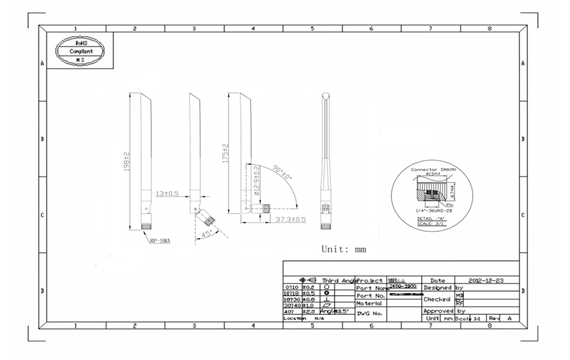

868MHz Antenna Dimensions
This is a omni-directional LoRa 868MHz antenna by 198mm in length and 13mm in diameter. It is manufactured by TPEE,PC and PBT which makes it quite light in weight. Due to its swivle and hinged design, it can be mounted at 0 degree, 45 degree and 90 degree.

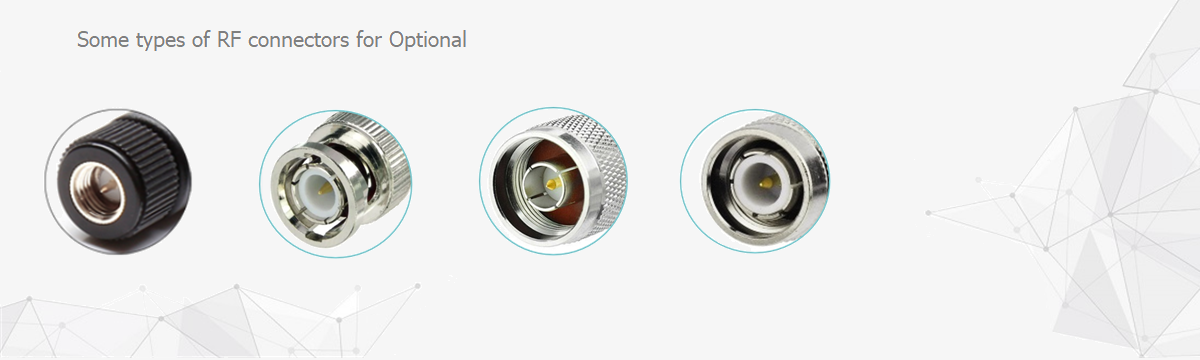

This antenna connector type can be customizable,usually, we can deal with it by SMA Male, BNC Male, TNC Male and N Male. Any questions accepted.
868MHz Antenna Datas
This 868MHz antenna has some reliable figures, like, Return Loss, Effiency and Peak Gain.
Return Loss: -15 dB
Efficiency: Up to 72%
Peak Gain: 3.2 dBi
Above good characteristics make it perform very well in different devices and systems, hope it can be your best choice.

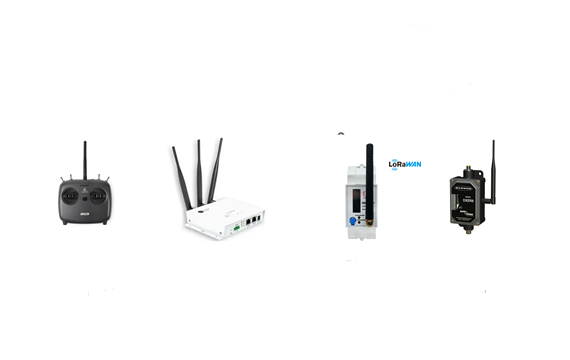

868MHz Antenna Applications
This ISM/LoRa external 868MHz antenna that can be used to transmit and receive wireless signals for long distance, so, it is ideal for some applications.
- IoT Networks
- Wireless Metering
- Telemetry Systems
- Wireless Sensor Networks
- Remote Control Devices
