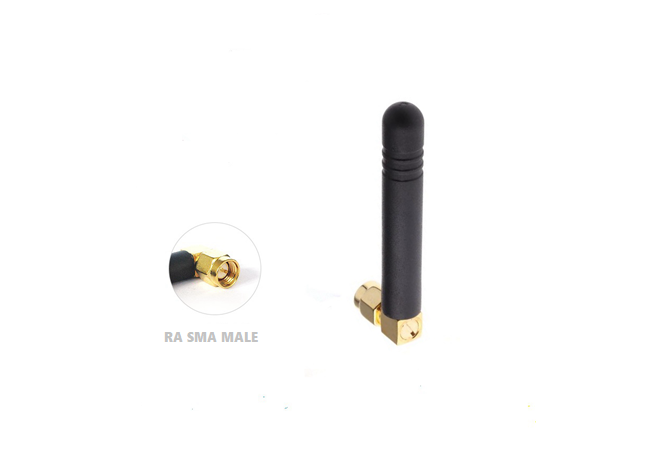

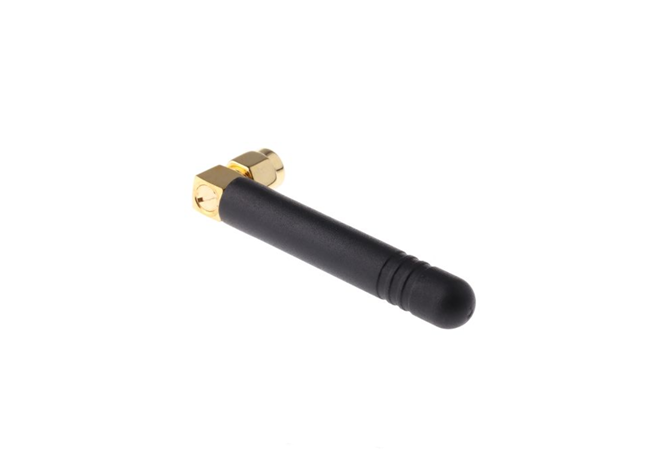

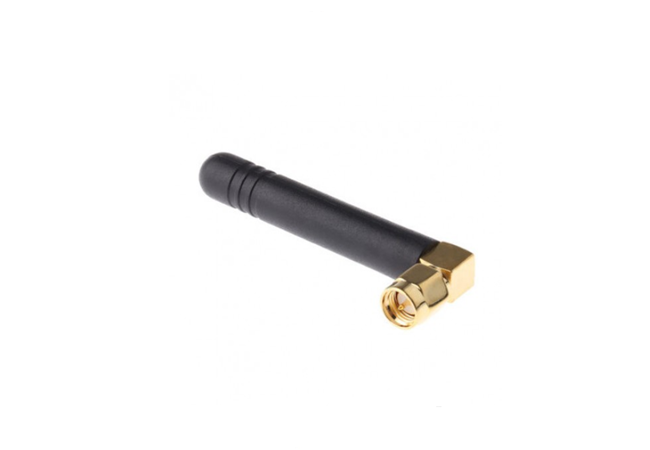

External Wideband 4G LTE Stubby Antenna
This is a small form factor SMA Male right angle antenna operated from 698MHz to 2700MHz.
- Small Form Factor
- LTE 698-2700MHz
- Linear Polarization
- 3dBi Peak Gain
- Omni Directional Radiation
- SMA Male Right Angle Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | LTE Stubby Antenna |
| Frequency Range | 698-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.5 |
| Polarization | Linear |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male Right Angle |
| Radome Color | Black |
| Packing | PE Bag |
This is one robust and compact 4G LTE stubby antenna via a standard SMA Male Right Angle connector which allows itself to be mounted directly to terminals or other fixed radios.
It covers all major 4G LTE bands all over the world in a small form factor and high efficiency, due to this feature, it is perfect for some innovative solutions where needs high peak gain antenna with compact size. Also, it is ideally suitable for 4G, LTE, IoT,Zigbee,Z-Wave and Bluetooth bands.
This rubber coated rigid antenna is suitable for commercial radios in public and private 4G and Cellular networks that is equipped with SMA Female connector.

LTE Stubby Antenna Features
This LTE stubby antenna offers effective performance with low VSWR across all bands. It is also ideally suitable to modems and terminals where a discreet and robust antenna is required.
It comes with standard SMA Male Right Angle connector which is designed to directly mounted onto some wireless devices.

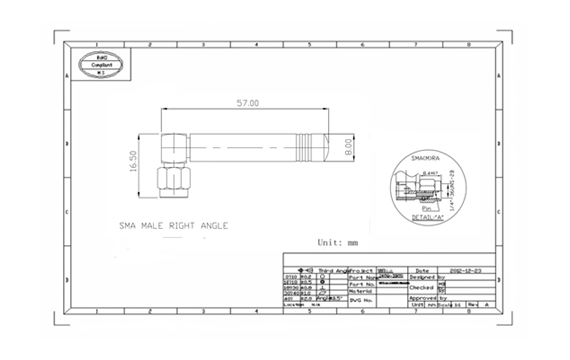

The weight is about 8g, and 57mm in height.

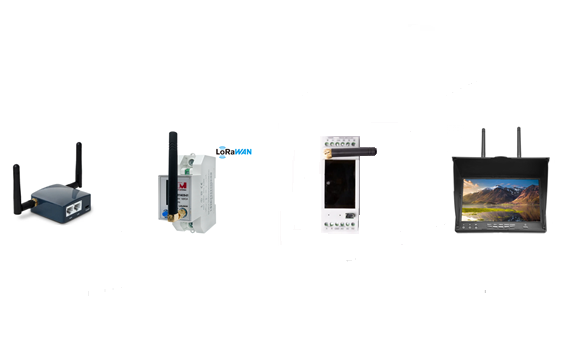

LTE Stubby Antenna Applications
This stubby antenna supports 700,800,850,900,1800,2100,2400 and 2600MHz. The light weight feature makes it suitable for some wireless applications such as UAVs and Robtics.
Its typical applications including:
Gateways, Infotainment Systems, Dash Cameras
Remote Monitoring, Hotspots, HD Video Transmission
Industrial IoT, Fleet Management, Logistics
Smart Meters
