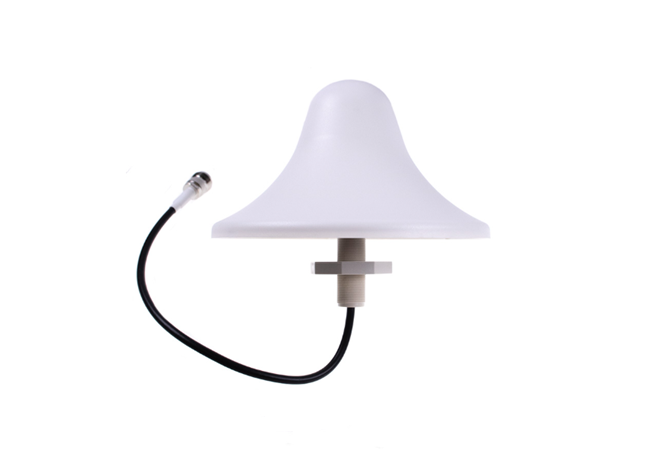

Indoor 3dBi Wide Band Ceiling Antenna
This is a high performance high gain ceiling antenna which has broad band working from 700MHz to 2700MHz.
- Broadband Antenna
- Multi-Band 700-2700MHz
- Low VSWR
- 3dBi Peak Gain
- High Efficiency
- Custom Cables and Connectors Available
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Ceiling Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni |
| Connector Type | N Female or Customizable |
| Radome Color | White |
| Packing | PE Bag |
This ceiling mount antenna is one wide band antenna solution, which can be used from 700MHz to 2700MHz, it covers all cellular bands, like, LTE, WIFI and WIMAX.
The multi-band and indoor features make itself ideal for in-buliding transmission on cellular telephone and wireless LAN signals.

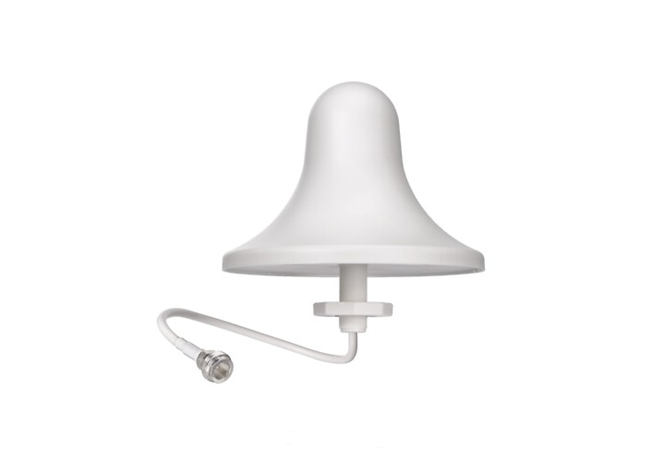

Ceiling Antenna Features
The radome enclosure is made by ABS plastic, and it has a low profile size on: 167mm in diameter and 98mm in height.
The broad band characteristic is ideal for distributed antenna systems (DAS), which is also used to transmit cellular and WIFI signals throughout where would require wireless networks-Hotels, Conference Centres, Exhibition Halls, Offices, Retail Outlets and so on.
The mount is a single hole mount design to easily mount to drop ceilings or fixed ceilings.
Ceiling Antenna Applications
This ceiling antenna with 3dBi high gain can provide all CPE and Hotspots wide coverage. The typical applications:
WIFI (802.11ac/ax/be)
Distributed Antenna Systems (DAS)
IoT (Internet of Things) and Smart Building Sensors
Public Safety Two-Way Radio (BDA/Repeater Systems)
Private Mobile Radio (PMR) and Professional Wireless
