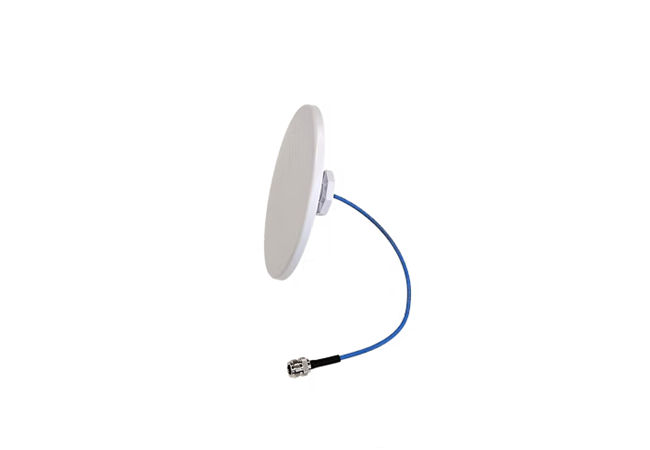

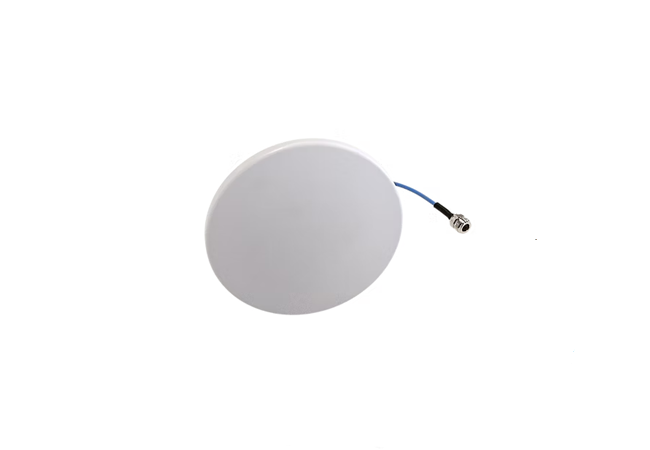

Indoor Ultra Low Profile Flat Omni Ceiling Antenna
This is a ultra low profile and low PIM indoor omni directional ceiling mount antenna with peak gain of 5dBi working from 698-3800MHz.
- Omnidirectional Radiation Pattern
- Covers 2G/3G/4G/5G bands
- Low profile
- 5dBi Peak Gain at 2500-2700MHz
- Supports AWS-3 Frequency Band
- N Femal Connector or Customizable
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Flat Ceiling Antenna |
| Frequency Range | 698-960/1350-1550/1690-3800MHz |
| Peak Gain | 5 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical (Linear) |
| Radiation Pattern | Omni Directional |
| Connector Type | N Female |
| Radome Color | White |
| Packing | PE Bag + Box |
This is a ultra low profile ceiling mount antenna which is designed to provide wide signal coverage that is optimized for indoor coverage requirements at 698-960MHz/ 1690-3800MHz for GSM, DCS,UMTS,AWS-3 and LTE & Wimax frequency bands.
The extreme low profile enables itself maximum mounting flexibility while maintaining desired in-building aesthetics.
It is also suitable for environments where aesthetics and wide angle coverage are necessary for wireless deployment.
Flat Ceiling Antenna Features

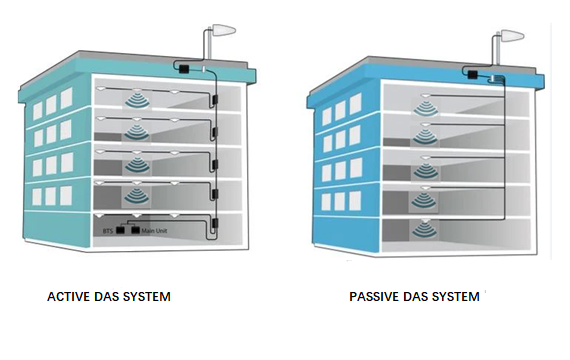

This is a low PIM rated and high performance omni ceiling mount antenna designed for in-building wireless networks such as DAS (Distributed Antenna Systems).
Its array multi-band design can eliminates the need to purchase different antennas for each frequency (698-3800MHz).
It is also designed specifically for in-building operation and is ideal for use in large open areas such as indoor coutryards, indoor sporting venues, convention centers and shopping malls.

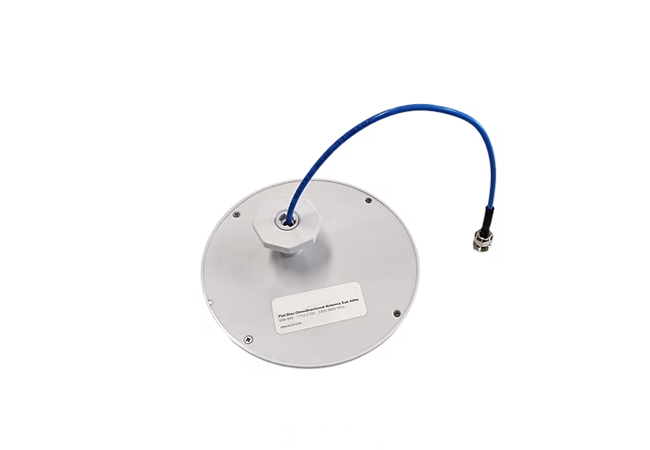

The mounting bracket and hardware make this flat ceiling antenna quite easy to install. This simplified installation can be used for a wide array of in-buliding wireless applications where wide coverage is desired.
Flat Ceiling Antenna Applications
This flat omni ceiling antenna can be operated from 698 to 3800 MHz which is ideal for 5G, LTE, CDMA, LPWAN/IoT/M2M applications including LoRA, LTE-M, and NB-IOT.
- LPWAN, LoRa, LTE-M, NB-IoT, IoT, M2M applications
- In-building cellular networks
- DAS (Distributed Antenna Systems)
- IEEE 802.11b/g WiFi applications
- Public safety
- SOFDMA
- 3.5 GHz Band Applications
- Wireless LAN systems & IEEE 802.11n & 802.16e Applications
