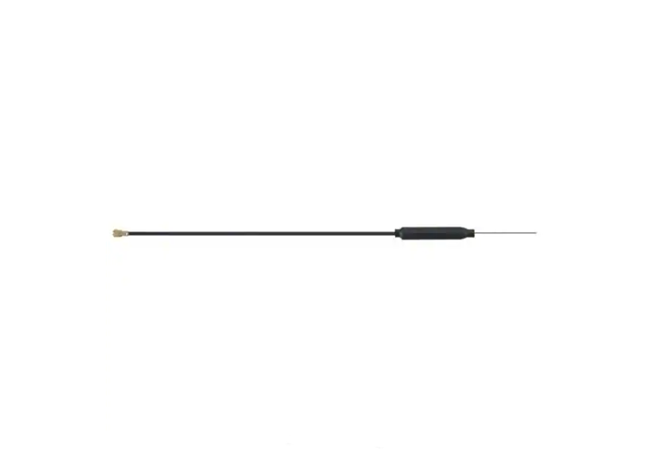

Internal 2.4G High Efficiency Coaxial Cable Dipole Antenna
This is one internal 2.4GHz dipole antenna by RG1.13 coaxial cable which is operated at 2.4G ISM band.
- Light Weight
- Ground Plane Independent
- Linear Polarization
- 2dBi Peak Gain
- Omni Directional Radiation Pattern
- IPEX MHF1 (U.FL) Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | 2.4G Cable Dipole Antenna |
| Frequency Range | 2400-2483MHz |
| Peak Gain | 2 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | IPEX MHF1 (U.FL) |
| Radome Color | Black |
| Packing | PE Bag |
This 2.4GHz internal antenna is one type of micro coaxial cable dipole antenna with IPEX MHF1 (U.FL) connector by omnidirectional radiation pattern, it has quite high efficiency up to 70% at 2.4G ISM band.
The high efficiency feature makes it also ideal for 2.4GHz UAV applications on FPV (First-Person View) with a reliable link.
Usually, the cable length is customizable.

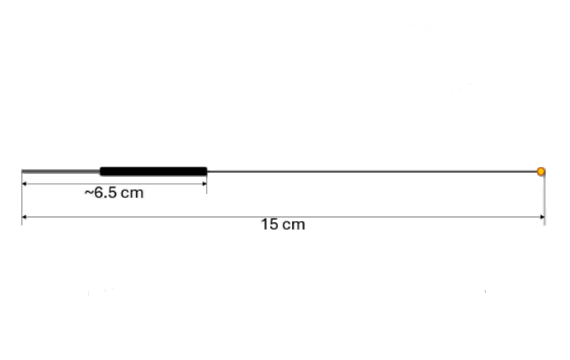

2.4G Cable Dipole Antenna Features

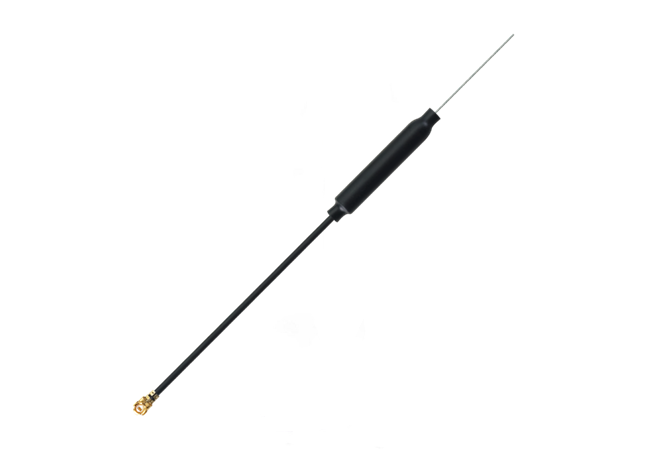

This type of cable dipole antenna comes in a small form factor which has lightweight and easy to install. Due to this these features, it is one best solution for fitting into narrow space and also can maintain high performance in device.

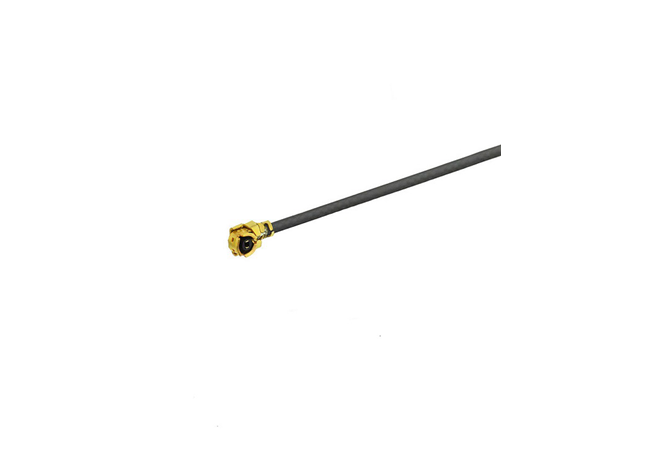

It comes with standard IPEX MHF1 (U.FL) micro connector and RG1.13 coaxial cable .
2.4G Cable Dipole Antenna Applications
According to its usage principles of limitations and common features, it is one effective solution for many applications.
WIFI (IEEE 802.11b / g / n)
Bluetooth / Zigbee or BLE (Bluetooth Low Energy)
Surveillance and Wireless Audio / Video
Radio Control (RC) and FPV Drone
Amateur Radio
