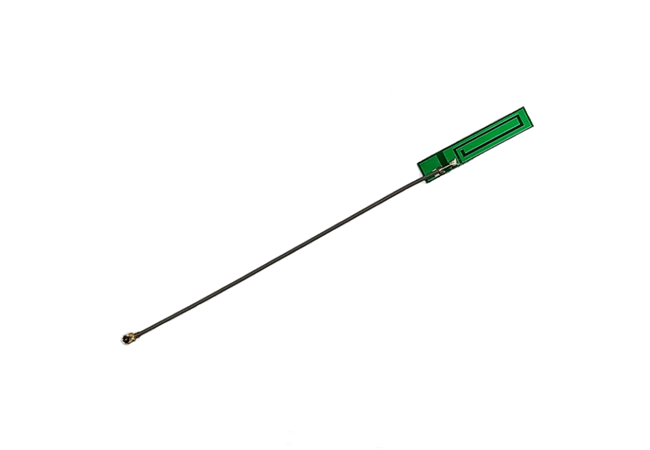

Internal Compact PCB GSM Embedded Antenna
This is a high performance compact PCB embedded antenna which can work on GSM frequency, especially on ISM 868MHz and RFID 915MHz.
- Omnidirectional Radiation Pattern
- Covers 2G/3G bands
- Compact Size
- 2dBi Peak Gain
- Designed for Embedded Applications
- U.FL / IPEX Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Embedded Antenna |
| Frequency Range | 800/900/1800/1900/2100MHz |
| Peak Gain | 2 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.2 |
| Polarization | Vertical (Linear) |
| Radiation Pattern | Omni Directional |
| Connector Type | U.FL / IPEX |
| Radome Color | Green |
| Packing | PE Bag |
This is a miniature PCB embedded antenna with a great peak gain performance.
It has a wide band frequencies from 800-2100MHz, which also can work better on ISM 868MHz and 915MHz RFID networks.

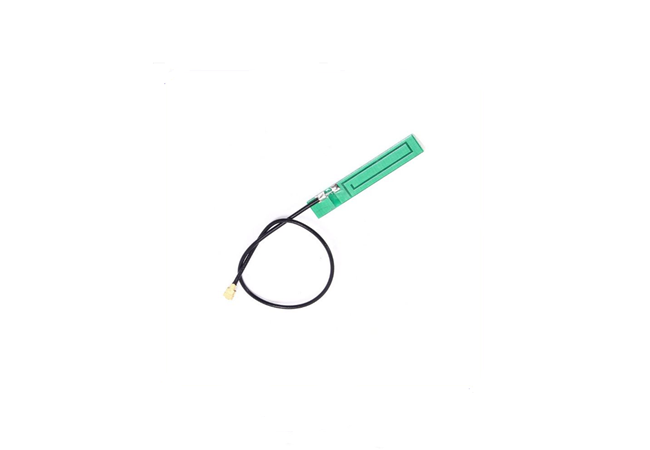

Usually, it comes with IPEX (U.FL) connector and RG1.13 coaxial pigtail cable, a foam on its back can assist in placing this antenna on clear surface with narrow space.

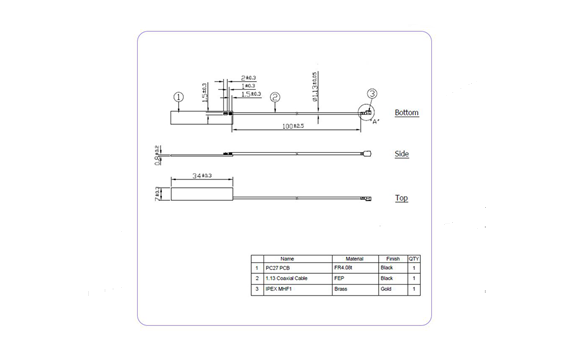

GSM Embedded Antenna Features

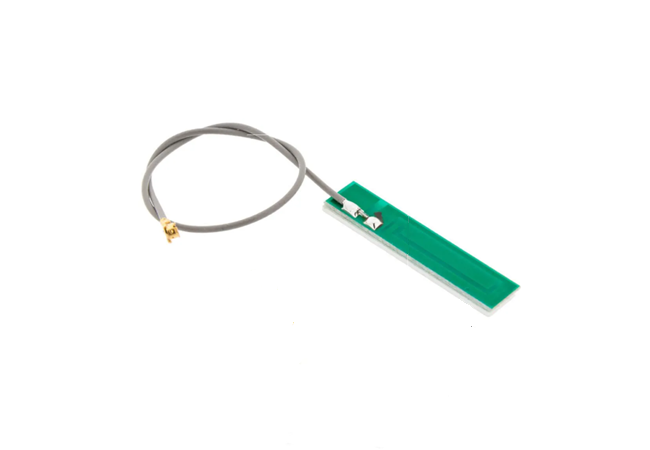

This GSM PCB antenna has a quite small size by 35mm in length and 7mm in width, and the PCB material is used by FR4 type.
It comes with RG1.13 coaxial cable and IPEX (U.FL) connector, sticker on back can be placed on some surfaces where is limited space.
Also, different connector types and pigtail cable length are optional.
GSM Embedded Antenna Applications
With high performance, its working frequencies: GSM850: 824-894MHz/GSM900(E-GSM):880-960MHz/GSM1800(DCS): 1710-1880MHz/GSM1900(PCS): 1850-1990MHz/3G2100(UMTS): 1910-2170MHz
So its key applications: Smart Metering
Wearables & Personal Trackers
Telematics Control Units
Remote Control
Mobile Medical Equipments
