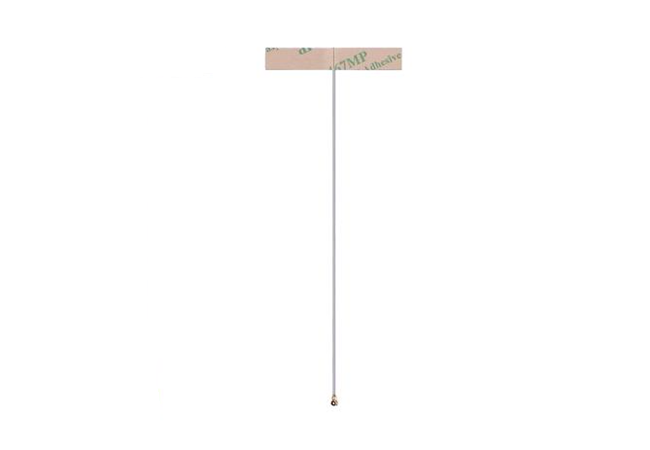

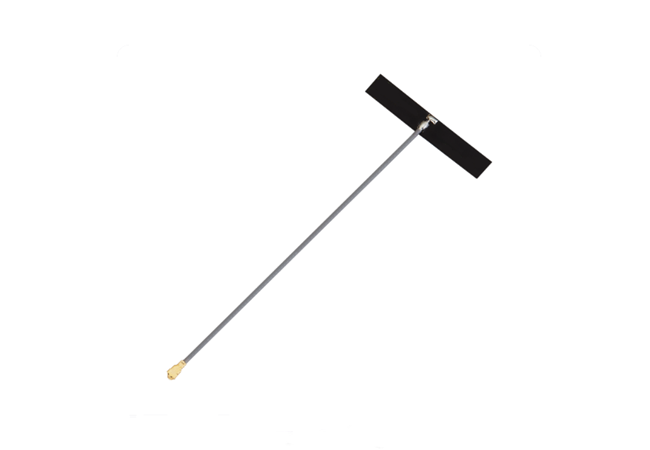

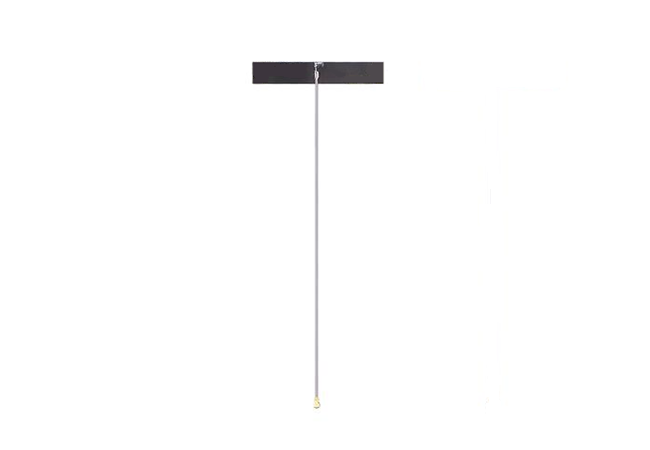

Internal Flexible PCB 2.4/5.8GHz Dipole Antenna
This is an internal flexible PCB dual band WIFI dipole antenna with omni-directional radiation pattern for 2.4/5GHz bands.
- Flexible PCB Design
- Ground Plane Independent
- High Efficiency
- Dimensions: 42*7*0.1 mm
- Cable: RG1.13 Coaxial Cable
- IPEX (MHF1) Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Dual Band WIFI Dipole Antenna |
| Frequency Range | 2400-2483/4900-6000 MHz |
| Peak Gain | 2 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Linear |
| Radiation Pattern | Omni Directional |
| Connector Type | IPEX (U.FL / MHF1) |
| Radome Color | Black |
| Antenna Body Material | Polymer |
This freedom dual band high efficiency omni directional dipole antenna is designed to used for 2.4G/5.8G frequency bands with very small size.
Its low profile and flexible polymer features is for tiny environment, so it can fit for irregular enclosure.
The cable length and connector are fully customizable.
Internal WIFI Dipole Antenna Features

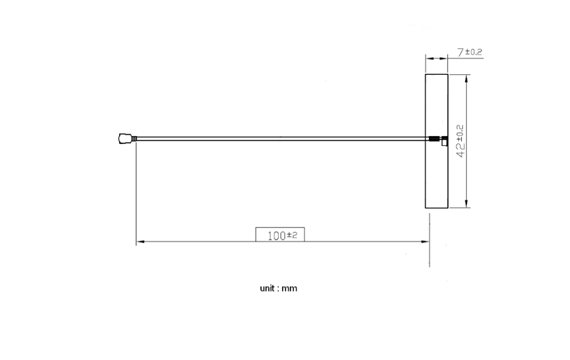

With dimensions of 42*7*0.1mm, it usually comes with RG1.13 coaxial cable and IPEX (MHF1) connector, double-side 3M tape makes it easy to peel and stick to plastic surface.
This internal antenna is ideal for many applications in embedded industrial and automotive devices.
Like some other embedded antennas, plz note that it must be away from metal at least 20mm distance.
Internal WIFI Dipole Antenna Applications
This antenna is designed for DSRC, V2X, WIFI, Bluetooth, Zigbee and so on.
The typical applications including:
Automotive
Remote Monitoring
Security
