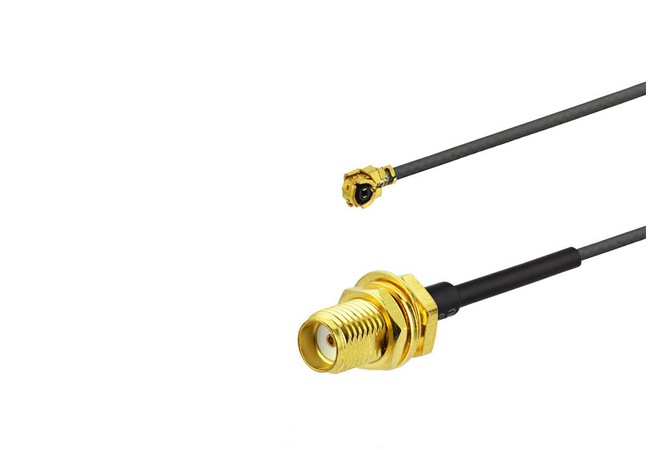

IPEX (U.FL) to SMA Female Bulkhead Straight Cable Assembly
This is a SMA Female bulkhead straight connector to IPEX (U.FL) connector cable assembly by RG1.13 black coaxial cable.
- RG1.13 Cable Assembly
- 0-6 GHz

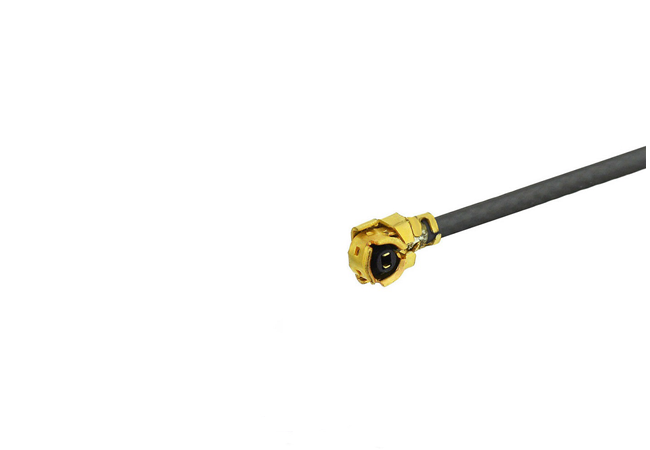

- IPEX (U.FL) Connector

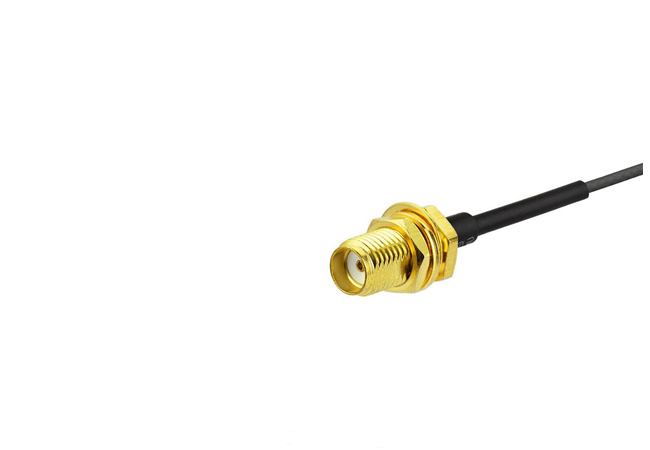

- SMA Female Bulkhead Straight Connector
- Cable Length Optional
- 50 Ohm Impedance
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | RG1.13 Cable Assembly |
| Frequency Range | 0-6000 MHz |
| Capacitance | 96 ± 3 pF/m |
| Impedance | 50 Ohm |
| VSWR | < 1.3 |
| Minimum Bend Radius | 6.8 mm |
| Shield Coverage | 90 % |
| Connector Type | IPEX (U.FL) + SMA Female |
| Radome Color | Black / Grey |
| Package | PE Bag |
This is cable assembly of RG1.13 coaxial cable made by IPEX (U.FL) and SMA Female bulkhead straight connector, which has 50Ohm impedance and working frequency bands from 0MHz to 6000MHz.
We usually deal with this pigtail cable in length by 10cm, 15cm and 20cm, also, the cable length can be customized.

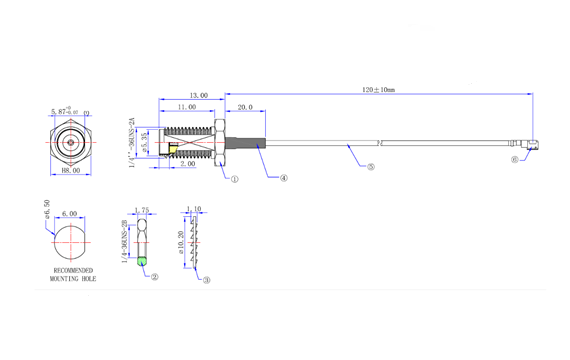

Pigtail Cable Assembly Features
This RG1.13 cable assembly is made by IPEX (U.FL) and SMA Female connector, it offers extension pigtail coaxial cable by low VSWR (<1.2). This high quality characteristic makes it can be used to connect wireless radios to antennas or other communication equipments.
The SMA Female connector and IPEX (U.FL) feature gold plated which makes this pigtail cable have great contacts for minimal attenuation.
Customizable cable length are available.

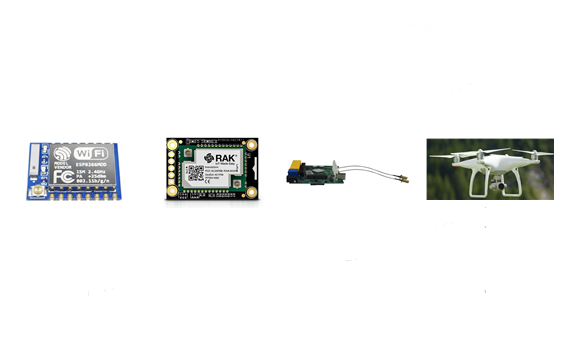

Pigtail Cable Assembly Applications
This RG1.13 cable assembly by IPE (U.FL) and SMA Female connector can be used for many applications, like:
WIFI Router/APs & Client Devices
Small Form Factor Computing & Prototyping
Consumer Electronics
Industrial & Telematics Equipment
Drones (UAV) & Robotics
Medical Devices
