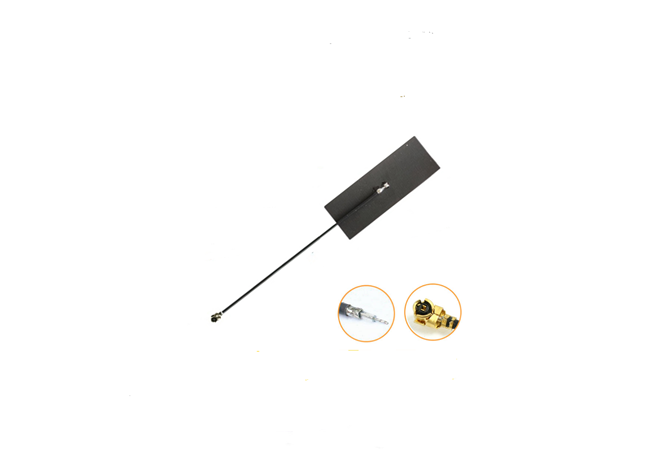

LoRaWAN Flexible PCB Embedded 433MHz Antenna

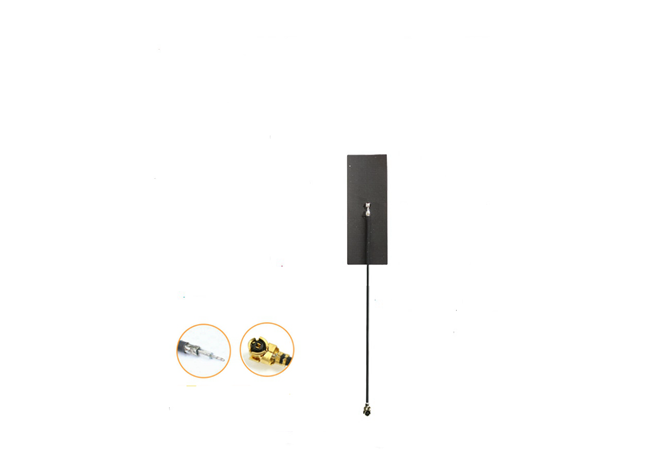

This FPC antenna is one type of flexible PCB embedded 433MHz antenna for ISM band with dipole array design.
- Omnidirectional Radiation Pattern
- Ground Plane Independent Dipole Antenna
- Compact & Low profile
- Adhesive Back Permanently
- Flexible to Fit in Challenging enclosures
- IPEX (U.FL) Connector Compatible with MHF1, AMC and UMCC
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | FPC 433MHz Antenna |
| Frequency Range | 420-440 MHz |
| Peak Gain | – 5 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical (Linear) |
| Radiation Pattern | Omni Directional |
| Connector Type | IPEX (U.FL) |
| Radome Color | Black |
| Packing | PE Bag |
This ISM / LoRaWAN FPC antenna is one type of flexible embedded 433MHz antenna for low-power and wide-area(LPWA) applications including LoRaWAN and remote control systems.
It performs quite well in LTE cellular bands 87 and 88 at 410MHz and 450MHz.
It can provide a ground plane independent dipole embedded antenna solution comparable to the performance to an external antenna.

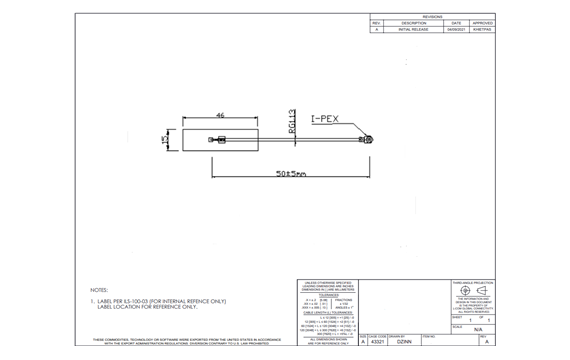

Embedded 433MHz Antenna Features

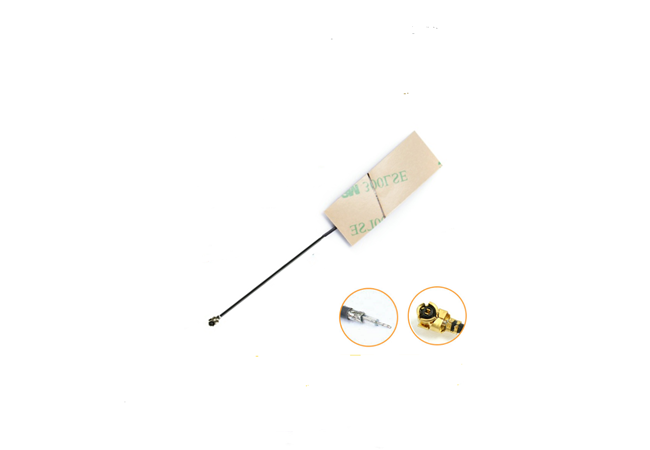

The flexible-and-adhesive backing makes this 433MHz FPC antenna very easy to mount in small space and customizable encolsures, while enabling sealed enclosed and protection from tampering or accidental antenna damage.
Connection is made to the radio via a 100mm long, RG1.13 coaxial cable terminated by IPEX (U.FL) type plug (female socket).
Embedded 433MHz Antenna Applications
Because of its adhesive characteristic, its major applications including:
Low-power, wide-area (LPWA) Applications- LoRaWAN
Internet of Things (IoT) Devices
Smart Home Networks
Remote Control, Monitoring and Sensors
410MHz LTE band 87 Cellular
450MHz LTE band 88 Cellular
