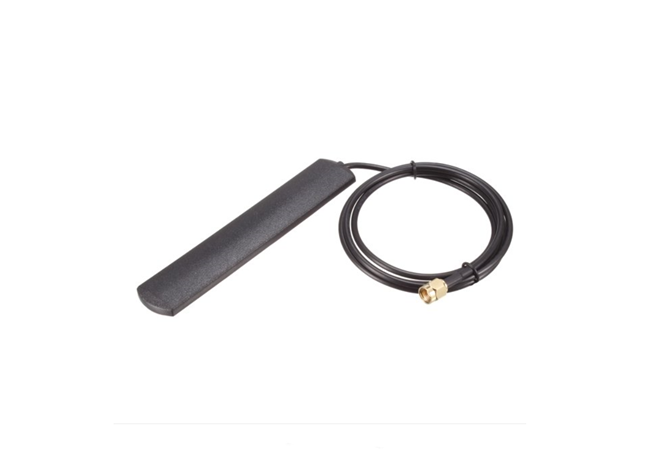

Low Profile 2G/3G/4G Cellular LTE Antenna
This is a high efficiency cellular wide band 4G LTE antenna, which can be used on devices’ surface with all 2G,3G and 4G LTE frequencies.
- 2G/3G and 4G LTE wide band antenna
- 3dBi High Gain
- Low profile for easy installation
- SMA, BNC, FAKRA and MMCX connectors Optional
- Size: 115*22 mm
- Cable length customizable
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Adhesive 4G Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.2 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA , BNC ,MMCX , FAKRA |

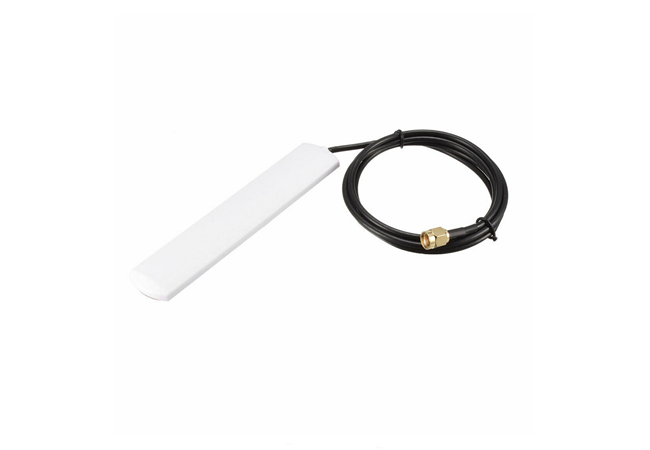

| Radome Color | Black or White |
| Package | PE Bag |
It is a high efficiency wide band LTE antenna which can be used on devices’ surface by all 4G LTE frequencies. This adhesive type is designed for some applications, like, Automotive,IoT and Telematics communications.
The 4G LTE advanced technology enable that it has great constant reception and transmission.

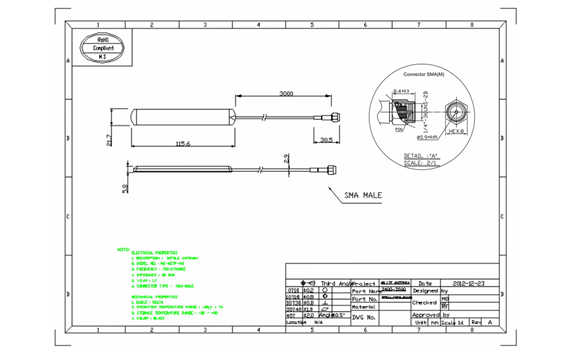

Low Profile 4G Antenna Features

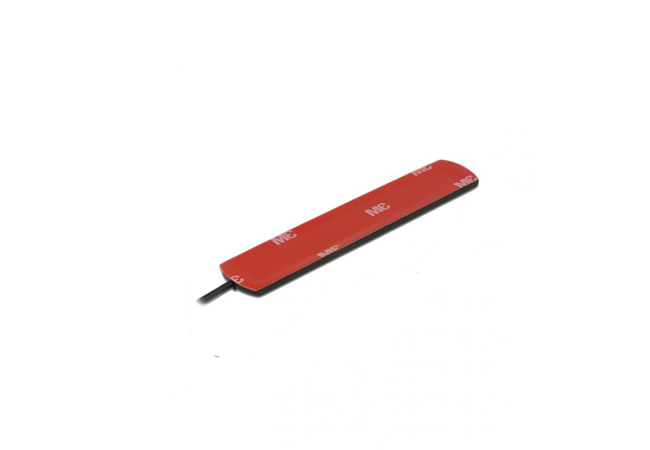

By its low profile and smalle size (115*22mm), it can be easily installation. The back side has a foam adhesive sticker for reliable mounting, so we call it adhesive mount antenna.
With high gain and high efficiency, it offers 3.3 dBi peak gain which can make it ideal for solutions on WIFI and 4G LTE access points.
Fully customizable cable length and connector, SMA,BNC,MMCX and FAKRA connectors optionals.
Low Profile LTE Antenna Applications
This 2G/3G and 4G LTE antenna are base on a tuned PCB element that matched with a quite wide band from 700MHz to 2700MHz.
It can be used for many modules, like:
Telematics
IoT networks
Fleet Trackings
Automotives.
