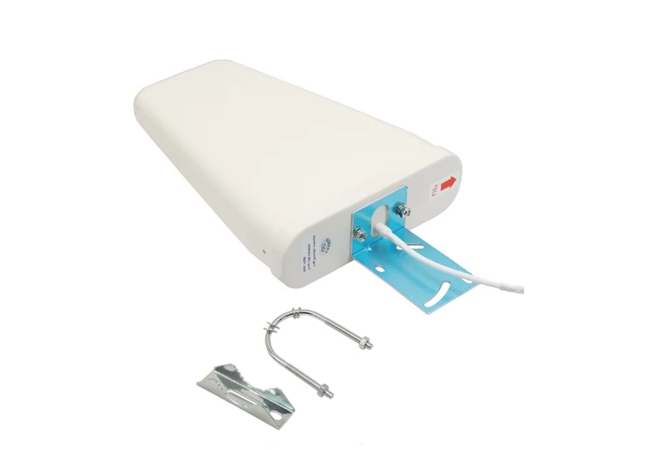

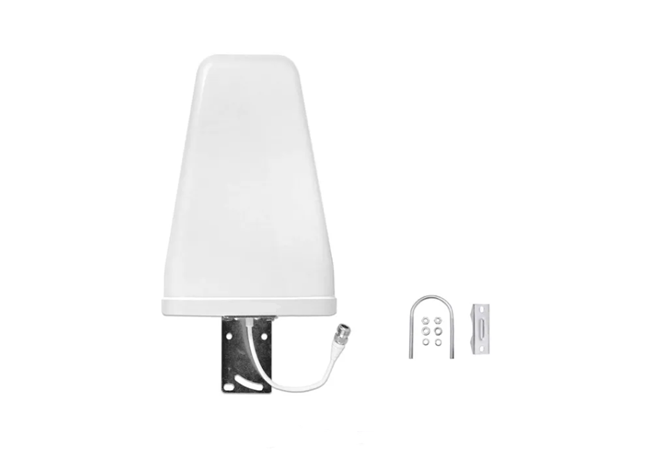

Outdoor High Gain 9dBi Directional LPDA Antenna

This is outdoor high gain directional LPDA antenna which is designed by high performance with 9dBi

ABS Housing
Directional Radiation Pattern
9dBi High Gain
Outdoor Waterproof /UV Protection
N Type Female Connector
RoHS Compliant

Specifications
Introduction
Datasheet

Antenna Type	LPDA Antenna
Frequency Range	698-960 / 1710-2700 MHz
Peak Gain	9 dBi
Impedance	50 Ohm
VSWR	<2.0
Polarization	Vertical
Radiation Pattern	Directional
Connector Type	N Male or N Female
Radome Color	White
Packing	PE Bag and Box

This is a high performance wide band log periodic dipole array (LPDA) antenna which is designed to operate from 698-960 / 1710-2700MHz. It can offer 6dBi high gain in the low bands and 9dBi high gain in the high bands with vertical directional polarization.

This wideband array design can eliminates the need to purchase different directional antennas for each frequency. The simple installation can be used for a wide array of wireless applications where wide coverage is desired.

It ensures high performance and low passive intermodulation (PIM) for reliable wireless communication.

Download Our Catalog

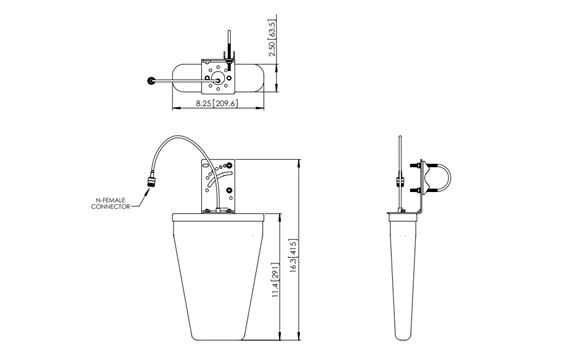

LPDA Antenna Features

This outdoor high gain directional LPDA antenna is ideal for Distributed Antenna Systems (DAS). A DAS system is used to distribute cellular and WIFI signals throughout a building or area.

The broadband characteristics of this LPDA antenna enable it operate over a very wide frequency range. This LPDA antenna features 6/9 dBi high gain and a 56° and 45° vertical beam width.

This LPDA antenna is enclosed with a UV protection white ABS radome for all

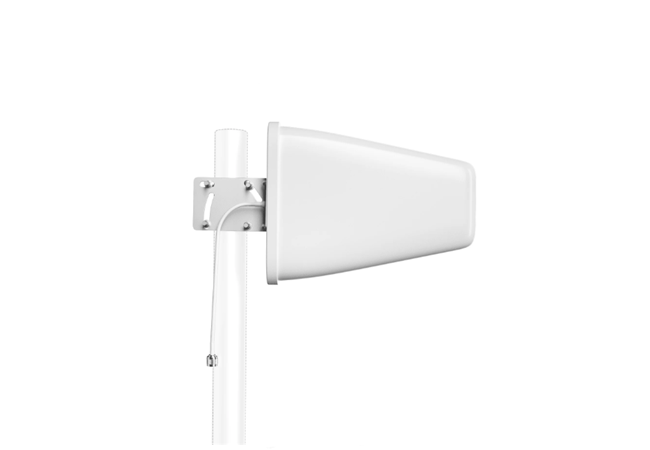

harsh environments and also supplied with a tilt-swivel mast mount kit.
