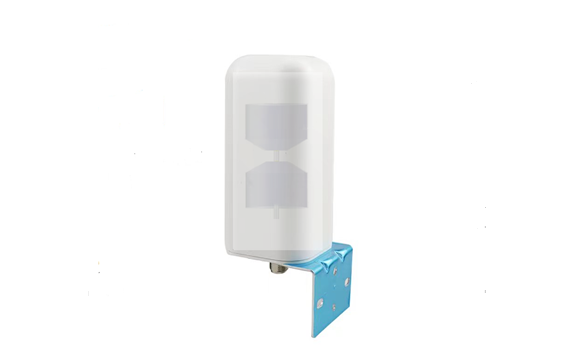

Outdoor Waterproof High Performance Omni Directional 5G Antenna
This is a outdoor 5G antenna with 8dBi high gain dealt with N Female connector.
- Operating Frequency: 600-6000MHz
- Peak Gain: 8dBi
- 75% High Efficiency
- N Female
- Height: 155 mm
- Diameter: 75 mm
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | 5G Outdoor Antenna |
| Frequency Range | 600-6000MHz |
| Peak Gain | 8dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | N Female |
| Radome Color | Grey |
| Package | PE Bag |

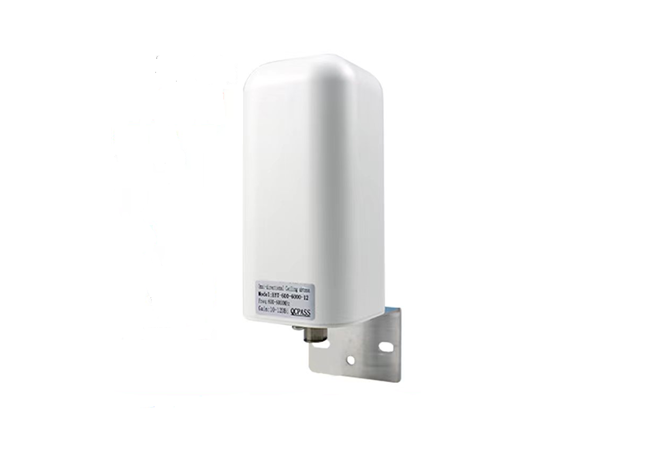

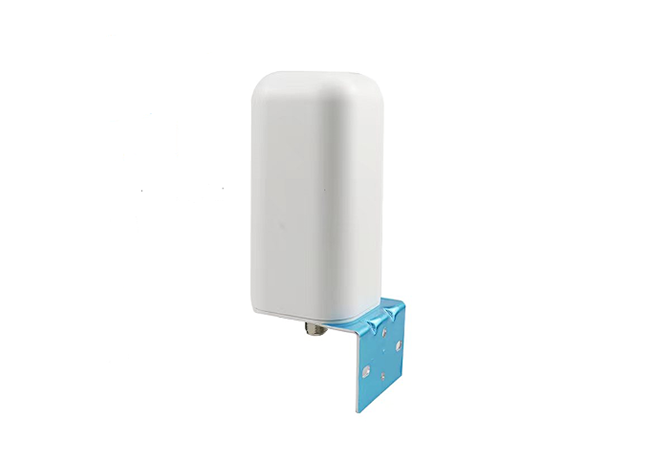

This is a quite small omni-directional fixed mount (N Female) 5G external antenna which can provide 8dBi high gain and support ultrawide band for AT&T, Verizon,T-Mobile, Bell, Rogers, Telus, HUAWEI and others worldwide.
It is ideal for use in vending machines, meter housings,equipments sheds or other locations requiring a vandal resistant external 5G antenna. Also, it is suitable for vehicle mounting on buses,vans, trucks or other mobile installations.
5G Outdoor Antenna Dimensions
This is a compact size 5G external antenna with 175mm in height and 75mm for width.

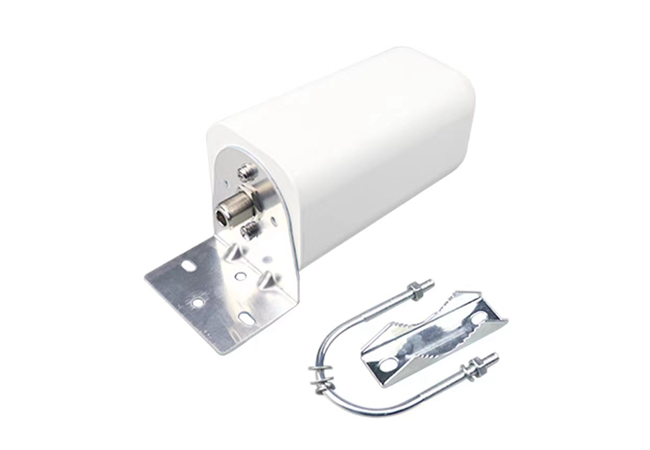

Its compact size with 8dBi high gain by ABS radome resistant corrosion makes this omni directional antenna perfect for outdoor or marine.
Usually, the connector is nickel-plated N Female connector.
5G Outdoor Antenna Datas
This high efficient omni-directional radiation pattern allows easy placement of the antenna in an elevated position. It can perfectly improve transmit and receive signals for all 4G/ LTE and sub-6 GHz 5G frequencies on Verizon, AT&T, T-mobile, Rogers, Telus, Telcel and many other cellular operators all over the world.
Return Loss: -15 dB
Efficiency: Up to 65%
Peak Gain: 8.2 dBi
5G Outdoor Antenna Applications
With appropriate RF cable, this omni directional 5G external antenna is compatible with most of 4G / 5G cellular modems, routers, gateways, hotspots such as Cisco, Huawei,Netgear, Proxicast and Sierra Wireless and ZTE.
Unlicensed 900MHz systems
2.4G/5.8G Wlan systems
Outdoor and Marine Installations
Machine to Machine (M2M) wireless connectivity
