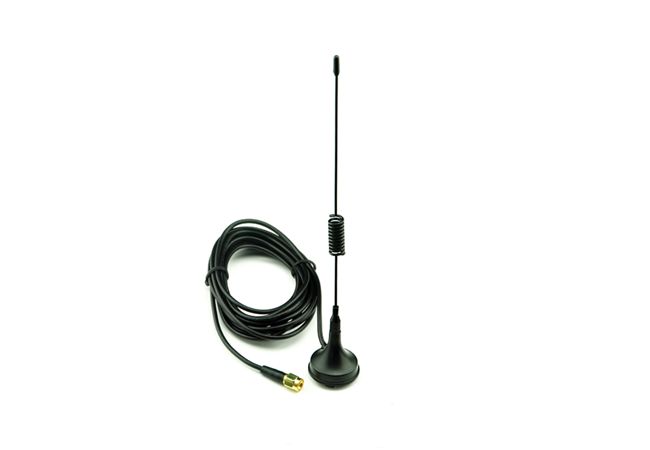

Tri-Band 3dBi Magnetic Mount GSM Antenna
This slim magnetic mount 3dBi omni antenna provides working frequency range from 824MHz to 2170MHz.
- Tri-Band GSM Operation
- Covers 2G/3G bands
- Magnetic Mount
- 3dBi Peak Gain
- Long Range Coverage
- SMA Male Connector
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | GSM Antenna |
| Frequency Range | 824-960 / 1710-2170MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA Male |
| Radome Color | Black |
| Packing | PE Bag |
This magnetic mount 3dBi omni directional antenna can provide broad coverage and also, which is designed to operate in 900MHz, 1800MHz,1900MHz and 2100MHz.

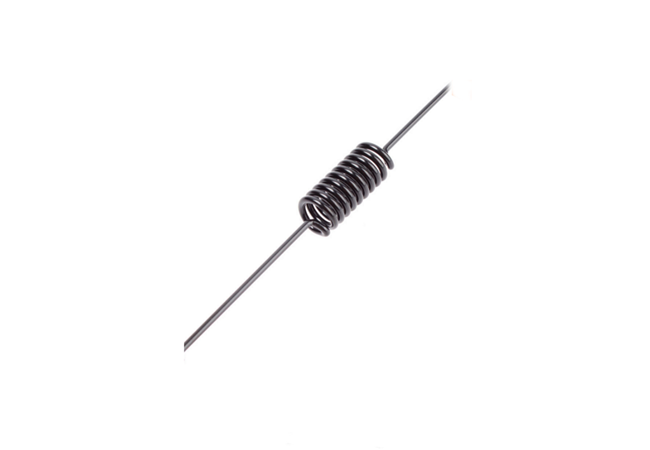

The antenna body is made by iron spring, so usually, we can call it spring antenna with magne in base.
The omni directional radiation pattern makes itself ideal for where low signals are desired.
GSM Extender Antenna Features
As magnetic mount omni antenna, it eliminates the need to purchase different antennas for each band.

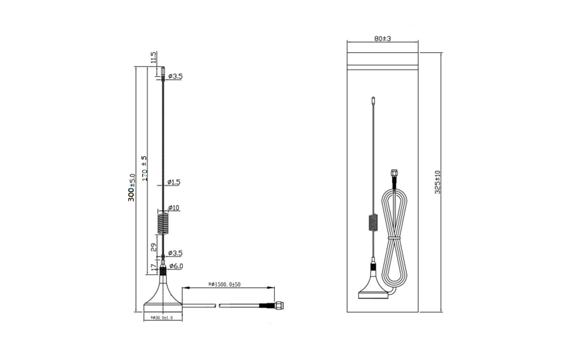

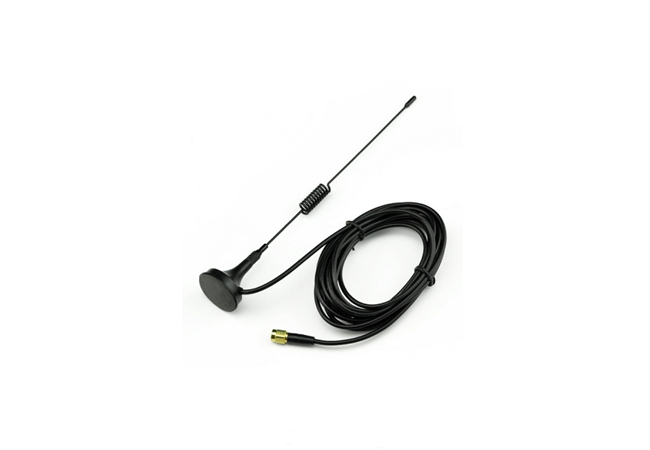

This omni GSM antenna has 200mm in length and 30mm in diameter for base. Its magnetic base is suitable for mounting to vehicles or other metal surfaces or metal shelves.
Usually, it comes with 3m RG174 coaxial cable by SMA Male connector, one more, the cable length is customizable. For RF connector, you can choose some other types, like, SMB, TNC, BNC and FME or N .

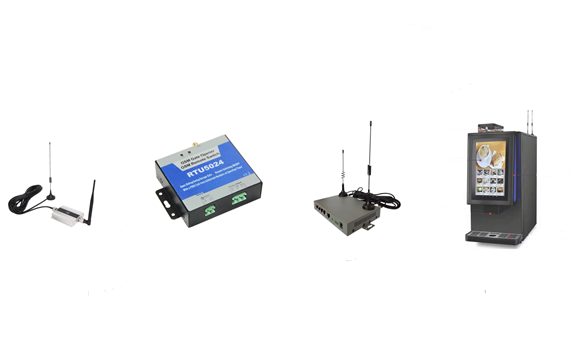

GSM Extender Antenna Applications
It is ideal for GSM, ISM , WLAN, RFID in 800MHz, 900MHz, 1800MHz. This antenna is also compatible with UMTS 1900MHz and UMTS 2100MHz. This antenna can be used with other data devices, Alltel, AT&T Wireless,Cellular One, Sprint PCS, SureWest, T-Mobile, Verizon Wireless. So, its applications including:
Service Vehicles
Public Transportation
Law Enforcement
Mining
