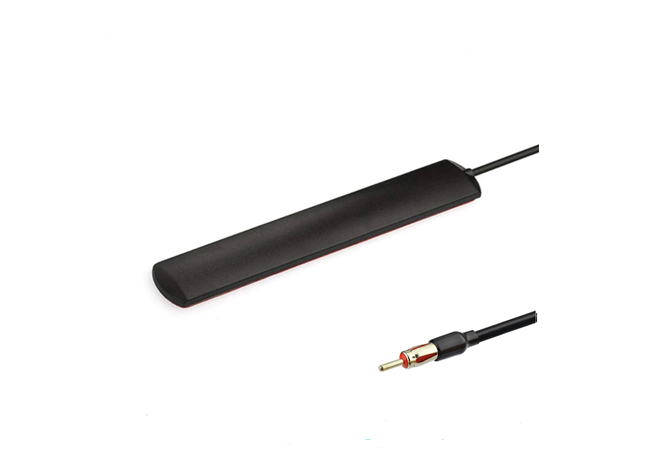

Universal 88-108MHz Adhesive Mount In-Vehicle Radio FM Antenna
This is adhesive mount FM antenna with 3dBi high gain operated from 88MHz to 108MHz.
- FM 88-108MHz Bands
- 3dBi Peak Gain
- Adhesive Mount
- High Efficiency up to 58%

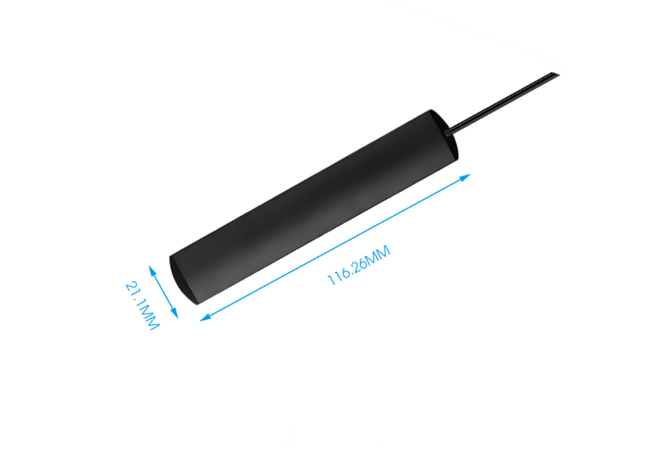

- Dimensions: 115*22mm
- Ground Plane Independent
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | FM Antenna |
| Frequency Range | 88-108MHz |
| Peak Gain | 3 dBi |
| Impedance | 75 Ohm |
| VSWR | <2.0 |
| Polarization | Vertical |
| Radiation Pattern | Omni Directional |
| Connector Type | Motorola Male |
| Radome Color | Black |
| Package | PE Bag |
This adhesive mount radio FM antenna is suitable for Car, Vehicle, Boat and Truck on 88-108MHz.
It is thin compact size makes itself embedded for vehicles. The low profile type is approved for use in heaty-duty equipments and it can meet strict standards.

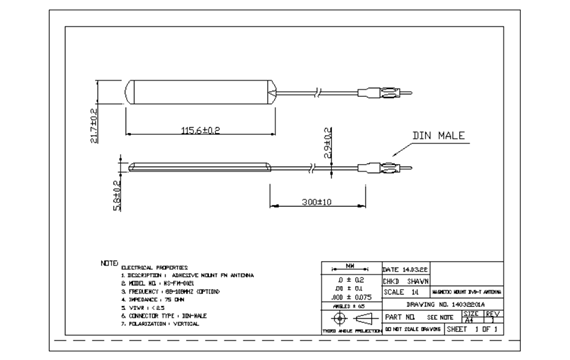

FM Antenna Features

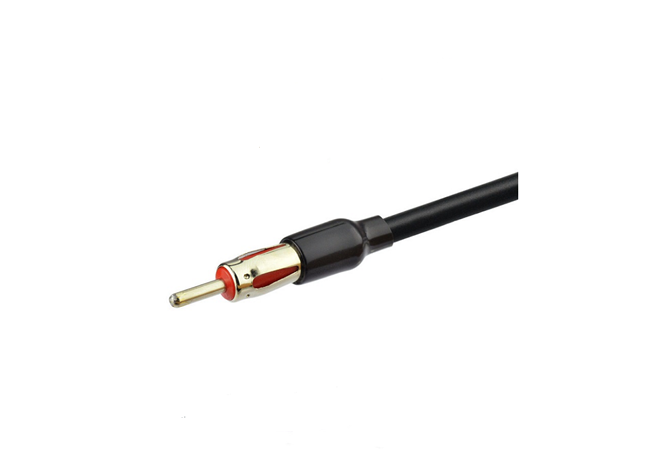

This low profile radio FM antenna usually comes with 300mm 1.5C-2V coaxial cable by 75Ohm impedance, terminated with Motorola Male connector for AM/FM frequency bands.
It is used for increasing signal sensitivity. Its connector and cable length are optional according to customers’ requests.

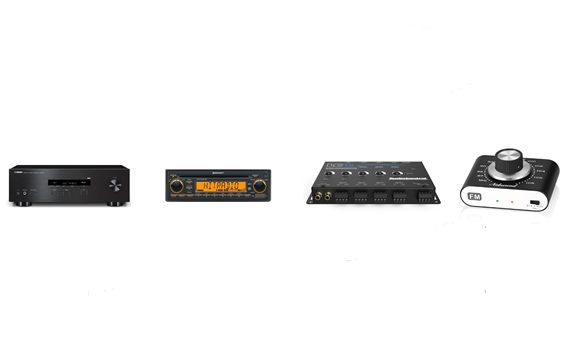

FM Antenna Applications
This antenna has passed heavy duty truck approved, and it is ideal for auomotives.
Home Audio Systems
Automotive Radios
Portable Radios
Component Tuners
Auxiliary Inputs / Bluetooth Transmitters
