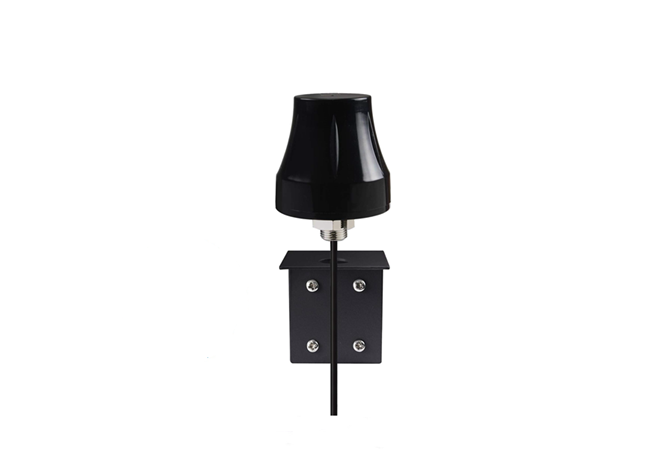

Waterproof Wide Band 4G LTE Omni Directional Antenna
This is a high performance screw mount wideband cellular 4G antenna for indoor or outdoor use.
- Wide band Antenna
- 698-960MHz / 1710-2700MHz
- 3dBi Peak Gain
- Screw Mount
- High Efficiency
- Ground Plane Independent
- Coaxial Cable Type Optional
- RoHS Compliant
- Specifications
- Introduction
- Datasheet
| Antenna Type | Cellular 4G Antenna |
| Frequency Range | 700-2700 MHz |
| Peak Gain | 3 dBi |
| Impedance | 50 Ohm |
| VSWR | <2.0 |
| Polarization | Linear |
| Radiation Pattern | Omni Directional |
| Connector Type | SMA or Customizable |
| Radome Color | Black |
| Package | PE Bag |
This screw mount wideband cellular 4G antenna can be used for external uses on vehicles or outdoor communication devices.
Its omni directional radiation pattern with high performance and high gain makes it ideal for constant reception and transmission across all 4G bands.
It is quite important for high data processing today in video and mobile broadband.

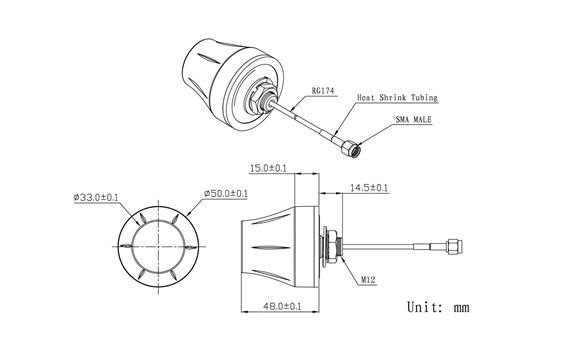

Waterproof 4G Antenna Features
Durable ABS material enclosure is resistant to vandalism and theftproof operation. At 48mm in height and 50mm in diameter, it can be mounted at height restrict places.

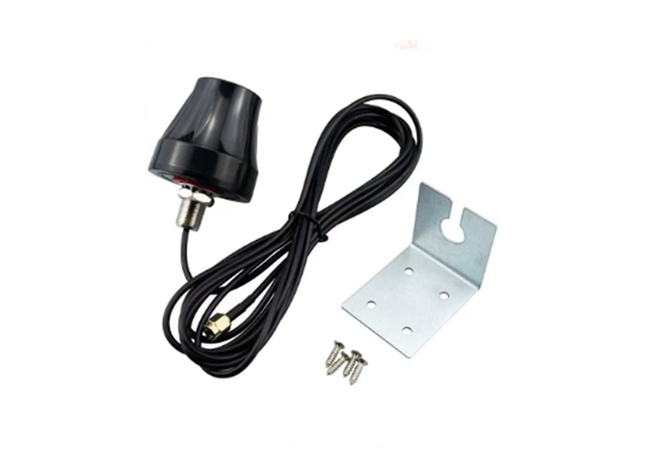

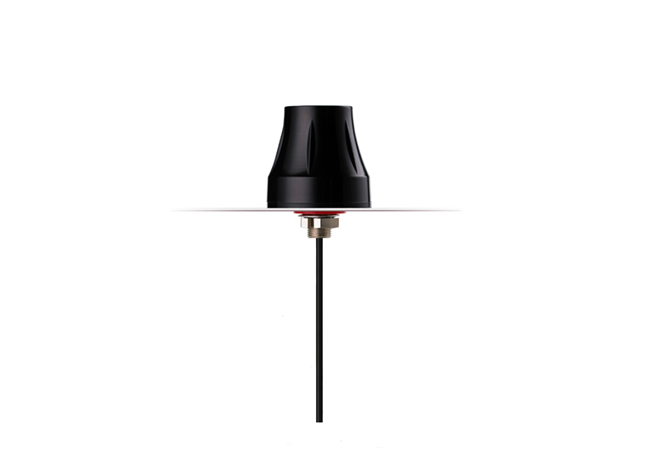

This wideband 4G antenna with M12 thread is usually placed on metal or plastic surfaces and is locked from inside by a nut, and also, can be mounted on wall by a L-type of bracket.
Customized cable type and connectors are available.
Screw Mount 4G Antenna Applications
This screw mount wideband 4G antenna can be operated from 700MHz (40% in efficiency) to 2700MHz (60% in efficiency).
Here are the primary applications:
Industrial Automation & Monitoring
Transportation & Fleet Management
Fixed Wireless Access
Internet of Things
Security & Surveillance
